Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Non-Rotating Float Shoe And Float Collar |
Material: |
P-110, K55, J55, N80,L80 |
Collor: |
Yellow,Grey Or As Required |
Thread: |
BTC,LTC,STC, Premium Connnection |
Service: |
OEM Service |
Product: |
Oilfield Non-Rotating Float Shoe And Float Collar |
Material: |
P-110, K55, J55, N80,L80 |
Collor: |
Yellow,Grey Or As Required |
Thread: |
BTC,LTC,STC, Premium Connnection |
Service: |
OEM Service |

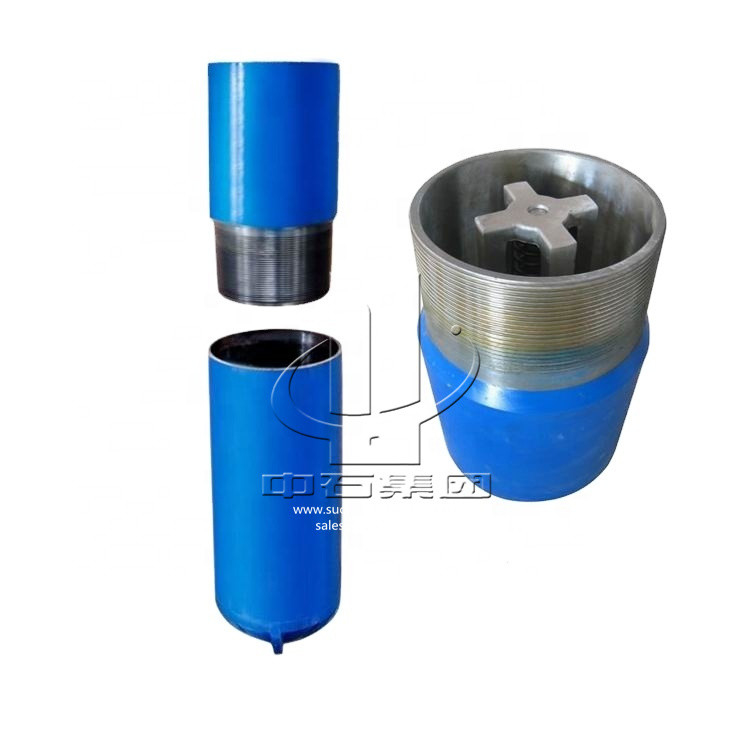

Oilfield Non-Rotating Float Shoe and Float Collar
The cement float collar& shoe offer dependable performance for all classes of oil and gas wells. The plunger type valves prevent cement backflow, provide casing buoyancy during run-in, and act as internal bops during the process of running and cementing the casing. Our float collar & shoe sizes range from 5 1/2” – 30” with float ball, stab in, non-rotating, spring and single / double valve types. Products in our factory are all manufactured to API standard, with strict quality control and inspection.
| Specification(in) | O.D.(mm) | Total length(mm) | I.D. (mm) | Min.Dia. (mm) | Conn Type | Affordable strength of back-pressure(Mpa) | |
| Float Collar | 5 | 141.3 | 500 | 110 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 530 | 112 | 55 | 5 1/2BCSG | 35 | |
| 7 | 194.46 | 586 | 162.5 | 77 | 7 BCSG | 35 | |
| 9 5/8 | 270 | 720 | 225 | 77 | 9 5/8 BCSG | 35 | |
| 13 3/8 | 365 | 720 | 319 | 77 | 133/8 BCSG | 35 | |
| 20 | 533.4 | 720 | 475 | 77 | 20 BCSG | 35 | |
| Float Shoe | 5 | 140.3 | 495 | 110 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 514 | 122 | 55 | 5 1/2 BCSG | 35 | |
| 7 | 194.46 | 533 | 162.5 | 77 | 7 BCSG | 35 | |
| 9 5/8 | 269.88 | 550 | 225 | 77 | 9 5/8 BCSG | 35 | |
| 13 3/8 | 339.7 | 550 | 319 | 77 | 133/8 BCSG | 35 | |
| 20 | 534 | 652 | 475 | 77 | 20 BCSG | 35 | |
