Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Drilling Cement Float Collar And Float Shoe |
Service: |
OEM |
Thread: |
BTC,LTC,STC, Premium Connection & Non API Thread |
Material: |
Carbon Steel, Steel & Aluminum |
Corlor: |
Blue Or As Required |
Application: |
Well Drilling |
Product: |
Drilling Cement Float Collar And Float Shoe |
Service: |
OEM |
Thread: |
BTC,LTC,STC, Premium Connection & Non API Thread |
Material: |
Carbon Steel, Steel & Aluminum |
Corlor: |
Blue Or As Required |
Application: |
Well Drilling |

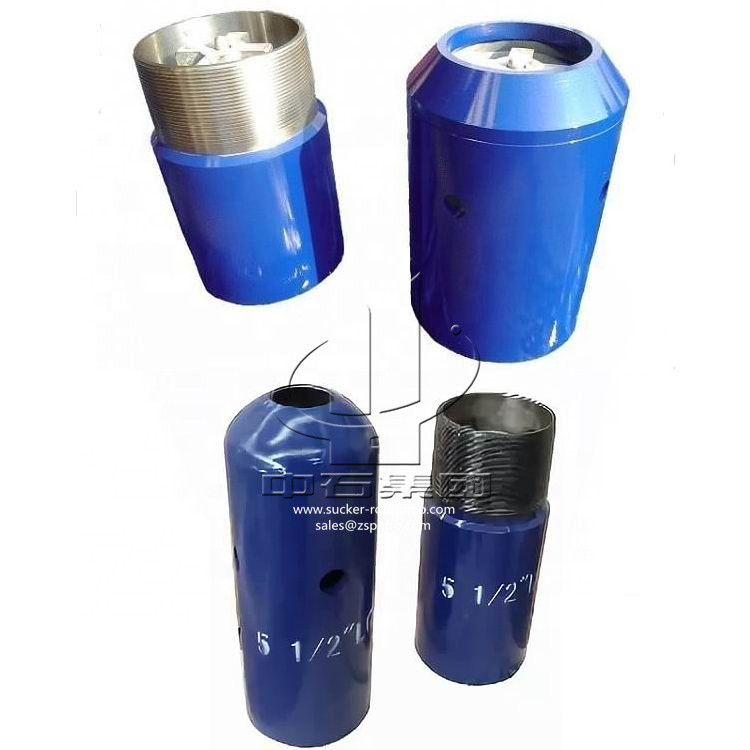

Oilfield Drilling Cement Float Collar and Float Shoe
The usage of casing float collar is to make the casing landing easily by reducing the loading.Casing Float Shoe is made from seamless casing grade steel and the design ensures positive sealing in vertical, horizontal and deviated wells.
| Specification(in) | O.D. | I.D. | Total | Min.Dia. | Working Pressure | Connection Type | |
| (mm) | (mm) | Length | (mm) | ||||
|
Float |
5" | 140.3 | 110 | 495 | 50 | 21~35 | BTC/LTC/BCSG |
| 5 1/2" | 153.67 | 112 | 514 | 55 | 21~35 | BTC/LTC/BCSG | |
| 7" | 194.46 | 162.5 | 533 | 77 | 21~35 | BTC/LTC/BCSG | |
| 9 5/8" | 269.88 | 225 | 550 | 77 | 21~35 | BTC/LTC/BCSG | |
| 13 3/8" | 339.7 | 319 | 550 | 77 | 21~35 | BTC/LTC/BCSG | |
| 20" | 534 | 475 | 652 | 77 | 21~35 | BTC/LTC/BCSG | |
