Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
API Oil Well Downhole Casing Plug-in Float Collar And Shoe |
Processing Type: |
Forging |
Valve: |
Single Or Double |
Material: |
P110,K55,N80 |
Fill: |
Aluminium Alloy Or Cement |
Application: |
Oil And Water Well Cementing Tools |
Product: |
API Oil Well Downhole Casing Plug-in Float Collar And Shoe |
Processing Type: |
Forging |
Valve: |
Single Or Double |
Material: |
P110,K55,N80 |
Fill: |
Aluminium Alloy Or Cement |
Application: |
Oil And Water Well Cementing Tools |

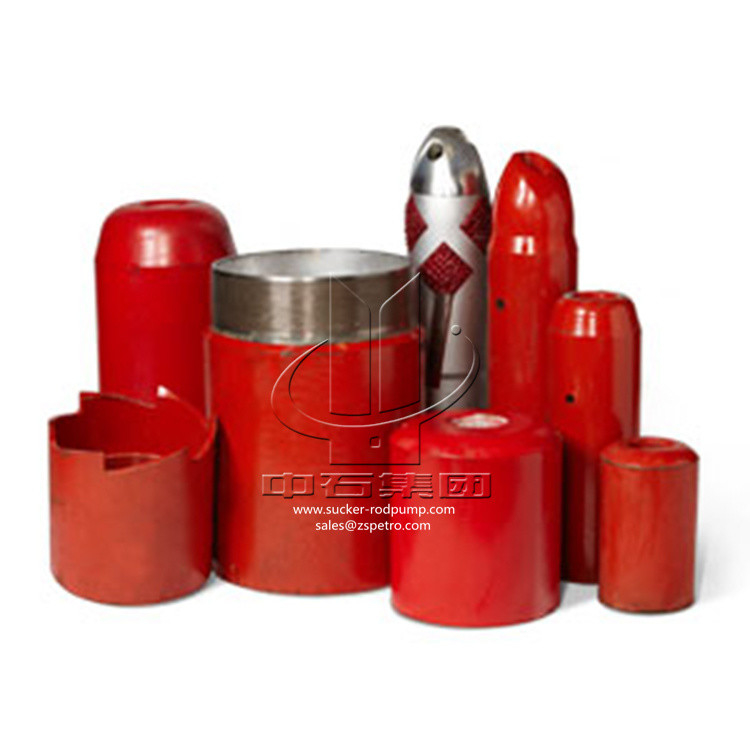

API Oil well downhole Casing Plug-in Float Collar and Shoe
Float Collar is supplied with plunger valve in most of the application. It contains a check valve to permit fluid to pass downward but not upward through the casing. The float collar prevents drilling mud from entering the casing while it is being lowered, allowing the casing to float during its descent and thus decreasing the load on the derrick or mast.
A non metallic Valve encased and held in place with a high pressure cement mixture.
This design ensure the valve the maximum circulation rate in vertical, horizontal and deviational wells.
Material used for float equipment is seamless casing grade steel.
Float equipment can be supplied in all grades of steel.
This non metallic valve encased and held in place with the high pressure cement mixture.
The design and manufacturing process of valve allow for maximum circulation rates.
All our Float Equipments are PDC drillable.
Our milling machines and lathes can handle various machining tasks.
|
Specification (in) |
O.D. (mm) |
Total Length |
I.D. (mm) |
Min.Dia. (mm) |
Connection Type | Working Pressure | |
| Float Collar | 5" | 141.3 | 500 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 530 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 586 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 270 | 720 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 365 | 720 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 533.4 | 720 | 475 | 77 | BTC/LTC/BCSG | 35 | |
