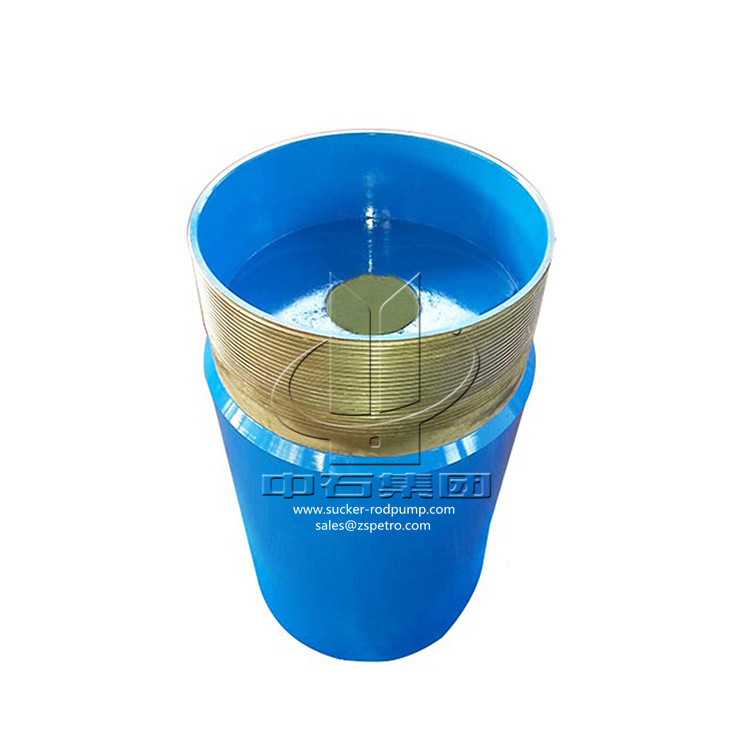

API Well Cement Float Equipment Casing Float Shoe Collar

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~36"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price
High Light:

Casing Float Shoe Collar

,

Well Float Shoe Collar

,

Cement Float Shoe Float Collar

Product:
API Standard Casting Float Shoe And Float Collar
Feature:
Specialized In Centralization For Underreamed Sections
Working Pressure:
21Mpa-35Mpa
Specification:
4 1/2"~36"
Thread:
API Type Or As Required
Application:
Oil And Water Well Cementing Tools
Product:
API Standard Casting Float Shoe And Float Collar
Feature:
Specialized In Centralization For Underreamed Sections
Working Pressure:
21Mpa-35Mpa
Specification:
4 1/2"~36"
Thread:
API Type Or As Required
Application:
Oil And Water Well Cementing Tools
API Well Cement Float Equipment Casing Float Shoe Collar

API Standard Casting Float Shoe And Float Collar



Small diameter inner string off drill pipe is used to displace cement which minimizes displacement volume behind Cement and there by reduces contamination and save time.Drill out of cement inside large casing is minimized by controlling cement top with displacement fluid in drill pipe And Plunger valve in Stab in Shoe


API Standard Casting Float Shoe And Float Collar Features:
  • Single valve and double valve are available;
  • Spring structure valve and ball strucuture valve are available;
  • Insert type and normal type are available.
  • Non-rotating type and normal type are available.

API Standard Casting Float Shoe And Float Collar Specification


Specification

(in)

O.D.
(mm)

Total
Length

I.D.
(mm)

Min.Dia.
(mm)

Connection Type Working Pressure
Float Collar 5" 141.3 500 110 50 BTC/LTC/BCSG 35
5 1/2" 153.67 530 112 55 BTC/LTC/BCSG 35
7" 194.46 586 162.5 77 BTC/LTC/BCSG 35
9 5/8" 270 720 225 77 BTC/LTC/BCSG 35
13 3/8" 365 720 319 77 BTC/LTC/BCSG 35
20" 533.4 720 475 77 BTC/LTC/BCSG 35

Float
Shoe

5" 140.3 495 110 50 BTC/LTC/BCSG 35
5 1/2" 153.67 514 112 55 BTC/LTC/BCSG 35
7" 194.46 533 162.5 77 BTC/LTC/BCSG 35
9 5/8" 269.88 550 225 77 BTC/LTC/BCSG 35
13 3/8" 339.7 550 319 77 BTC/LTC/BCSG 35
20" 534 652 475 77 BTC/LTC/BCSG 35
