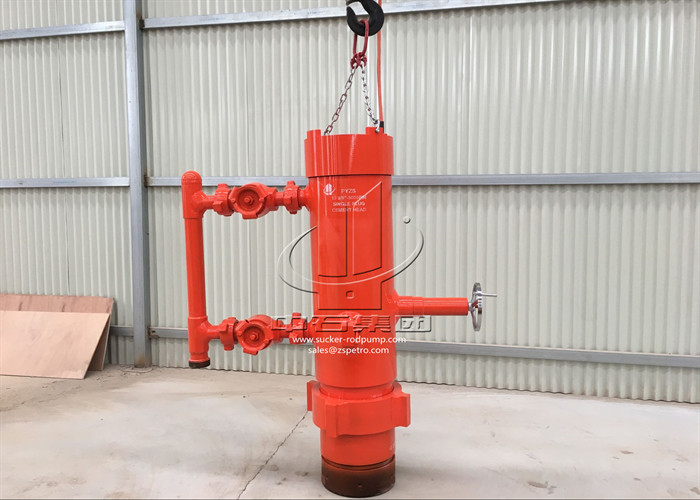

Preventing Pollution Cement Head High Pressure Manifold With Quick Change Adapter

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~36"

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price
High Light:

Cement Head High Pressure Manifold Q

,

Preventing Pollution High Pressure Manifold

,

Quick Change Adapter Cement Head

Type:
Cementing Head
Color:
Red Or As Required
Application:
Oil And Water Well Cementing Tools
Working Pressure:
21Mpa-35Mpa
Thread:
API And Premium Thread
Other:
Automatically Running Into The Hole
Type:
Cementing Head
Color:
Red Or As Required
Application:
Oil And Water Well Cementing Tools
Working Pressure:
21Mpa-35Mpa
Thread:
API And Premium Thread
Other:
Automatically Running Into The Hole
Preventing Pollution Cement Head High Pressure Manifold With Quick Change Adapter

Cementing Head With Quick Change Adapter For Preventing Cement Pollution Cement Head High Pressure Manifold



Material Detail:



Main parts are made from AISI4145H alloy steel.
Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
It is manufactured utilizing API grade steels with API threads.
Positive lever indicates plug releasing.
Balance pipe is developed.Cementing Head Single Plug Type-Puyang Zhongshi Group Co.,Ltd



Single plug cement head is a special tool for pumping slurry and releasing pumpdown plug. It can

couple with one plug, and make the drilling fluid fill into drill pipe in turn and quickly, simplify ce-

menting operation and prevent cement pollution.



Open lift nipple on top of cement head, install pumpdown plug into cement body.

Connect cementing pipeline and slurry pipeline with union.

The connection thread of Top lift nipple and body.



The structure of the ZSC rotating drill pipe cement head as fellow:

The Bottom has a rotating joint, which is used to rotate casing. The pumpdown plug is installed in the body, and Spiral Pin Assembly is used to stop plug, the indicator shows whether plug pass through the rotating drill pipe cement head.





Features



a. Quick-latch adapter is designed to offer easier, faster and safer makeup for cementing casing.

b. Balance pipe is developed.

c. Able to couple with two plugs simultaneously. Simplify the cementing operation and prevent cement pollution.

d. Positive lever indicates plug releasing.

Preventing Pollution Cement Head High Pressure Manifold With Quick Change Adapter 0
