Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
API Cement Plug Non Rotating Self-Locking Wiper Rubber Plug Core Is Up To 200 Degree Fahrenheit. |
Thread: |
API Or As Required |
Feature: |
PDC Drillable |
Industry: |
Energy & Mining |
Temperature: |
-30℃ To 150℃ |
Use: |
Cementing Tools |
Product: |
API Cement Plug Non Rotating Self-Locking Wiper Rubber Plug Core Is Up To 200 Degree Fahrenheit. |
Thread: |
API Or As Required |
Feature: |
PDC Drillable |
Industry: |
Energy & Mining |
Temperature: |
-30℃ To 150℃ |
Use: |
Cementing Tools |

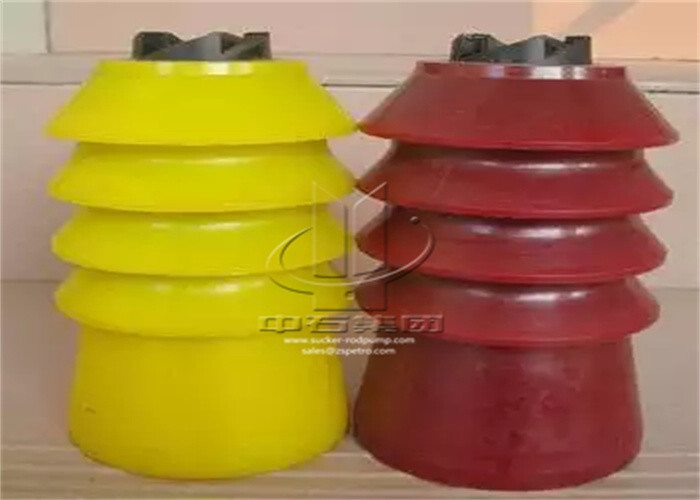

API Cement Plug Non Rotating Self-Locking Wiper Rubber Plug
Cementing Plugs are used to remove mud & others during cementing operations. There are two types of Cementing Plugs used in the cementing process: Bottom Cementing Plug and Top Cementing Plug.
The Bottom Cementing Plug is launched ahead of the cement slurry to minimize contamination by fluids inside the casing prior to cementing. Available in standarded and non-rotating types.
The Top Cementing Plug has a solid body that provides positive indication to contact with the landing collar and bottom plug through an increase in pump pressure.
|
Casing size (in) |
casing weight range | Wiper Fin O.D | ||
| mm | in | mm | in | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8 | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8 | ||||
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10 3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.11 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
