Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Cementing Plug |
Thread: |
API Or As Required |
Feature: |
PDC Drillable |
Industry: |
Energy & Mining |
Temperature: |
-30℃ To 150℃ |
Use: |
Oil Drilling Rigs, Well Drilling |
Product: |
Cementing Plug |
Thread: |
API Or As Required |
Feature: |
PDC Drillable |
Industry: |
Energy & Mining |
Temperature: |
-30℃ To 150℃ |
Use: |
Oil Drilling Rigs, Well Drilling |

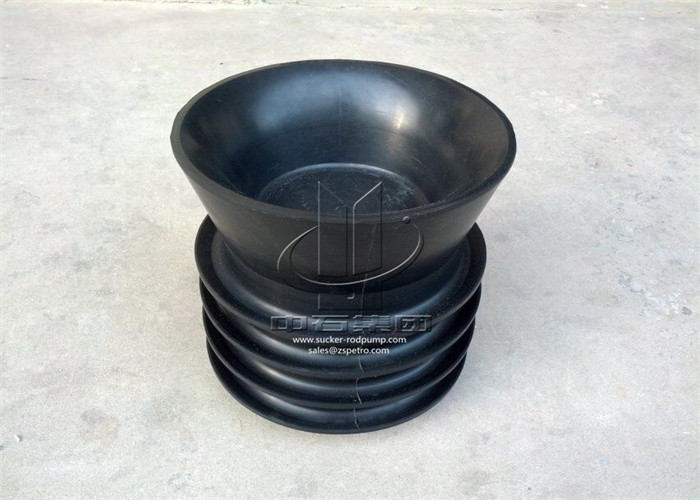

PDC Self-Locking Wiper Rubber Bottom Plug Oilfield Cementing Plug
These series of cementing plug have reinforced locking teeth built into the plugs, which lock together between the plugs and the float equipment to eliminate rotation of the plug during drill out.There are two types of Cementing Plugs used in the cementing process: Bottom Cementing Plug and Top Cementing Plug.
PDC Drillable Top And Bottom Cementing Plug Drilling Casing Features
|
Casing size (in) |
casing weight range | Wiper Fin O.D | ||
| mm | in | mm | in | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8 | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8 | ||||
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10 3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.11 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
