Deep Downhole Sucker Rod Pump For Oil Well Production

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

Downhole Oil Well Rod Pump

,

Sucker Oil Production Pump

,

Oil Production Suker Rod Pump

Type:
Sucker Rod Pump
Another Name:
Downhole Pump
Oil Well:
Deep Oil Well
Barrel Coating:
Chrome Plated Or Nickel Carbide
Barrel Material:
AISI 1045 Steel In Usual
Model:
RH And RW
Type:
Sucker Rod Pump
Another Name:
Downhole Pump
Oil Well:
Deep Oil Well
Barrel Coating:
Chrome Plated Or Nickel Carbide
Barrel Material:
AISI 1045 Steel In Usual
Model:
RH And RW
Deep Downhole Sucker Rod Pump For Oil Well Production

Deep Well Oil Sucker Rod Pump For Oil Well Production



Deep well oil sucker rod pump description:



Puyang Zhongshi Group manufacture all subsurface pumps covered by API Spec 11AX, including all barrel and plunger materials and surface finishes.



For the deep well, We researched and develop the suspension pump. This pump barrel uses a suspension structure, thus it improves the load bearing structure and makes the pump work in the deep well. The setting depth of pump could be 500-1500 meters deep. This pump has the following characteristics: to prevent bending, the pump uses the gap bridge structure, the barrel is suspended in the outer section and does not bear any pressure thus, not easy to bend.



Main parts process and material:
Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.







API pump parts parameters table:



API CODE Parts description Tubing Size & Pump Size
2 3/8x1 1/4 2 3/8x1 1/2 2 7/8x2 3 1/2x2 1/2
Complete Pump Designation
20-125 20-150 25-200 30-250
B21 Bushing, Valve Rod B21-20 B21-20 B21-25 B21-30
R11 Rod, Valve R11-20 R11-20 R11-25 R11-30
C12 Cage, Top Plunger C12-125 C12-150-20 C12-200 C12-250
P21 Plunger, One Piece P21-125 P21-150 P21-200 P21-250
C13 Cage, Closed, Pin Plunger C13-125 C13-150 C13-200 C13-250
V11 Traveling Valve V11-125 V11-150 V11-200 V11-250
P12 Plug Seat P12-125 P12-150 P12-200 P12-250
G11 Guide, Valve Rod G11-20 G11-20 G11-25 G11-30
S21 Seating Assembly, Mechanical Top Lock S21-20 S21-25 S21-25 S21-30
B11 Barrel, Thin Wall B11-125 B11-150 B11-200 B11-250
C14 Cage, Closed Barrel

C14-20-

125

C14-20 C14-25 C14-30
V11 Standing Valve V11-175 V11-175 V11-225 V11-250
B22 Bushing, Seat, Barrel Cage B22-20 B22-20 B22-25 B22-30
N14 Nipple, Seating, Mechanical Top Lock N14-20 N14-25 N14-25 N14-30

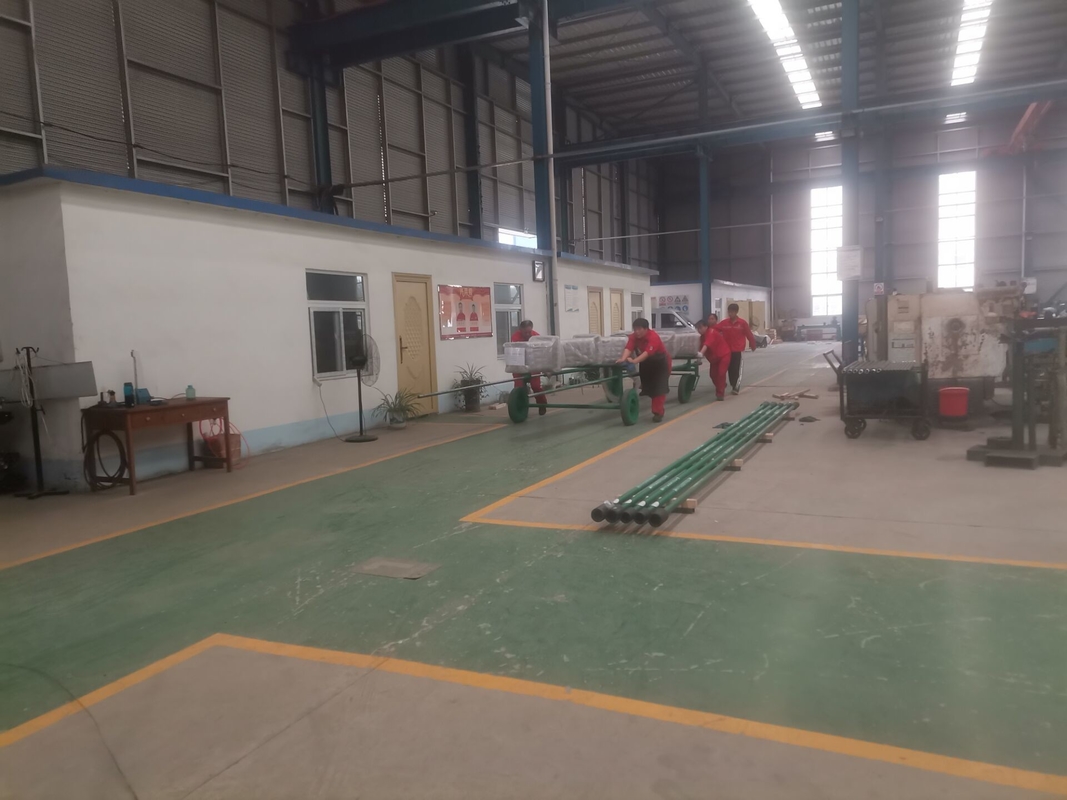

Delivery photo:

Deep Downhole Sucker Rod Pump For Oil Well Production 0
