Product Details
Place of Origin: China
Brand Name: PUYANGZHONGSHI
Certification: API 11E-0065
Model Number: API or customized
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD15000-30000$/pcs
Packaging Details: standard package
Delivery Time: 30-60 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 pcs one month
Processing Type: |
Forging,Casting |
Use: |
Well Drilling |
Color: |
Customer's Requirement |
Machine Type: |
Pumping Unit |
Standard: |
API |
Advantage: |
High Performance,Anti-Corrosion & Anti-Abrasion |
Processing Type: |
Forging,Casting |
Use: |
Well Drilling |
Color: |
Customer's Requirement |
Machine Type: |
Pumping Unit |
Standard: |
API |
Advantage: |
High Performance,Anti-Corrosion & Anti-Abrasion |

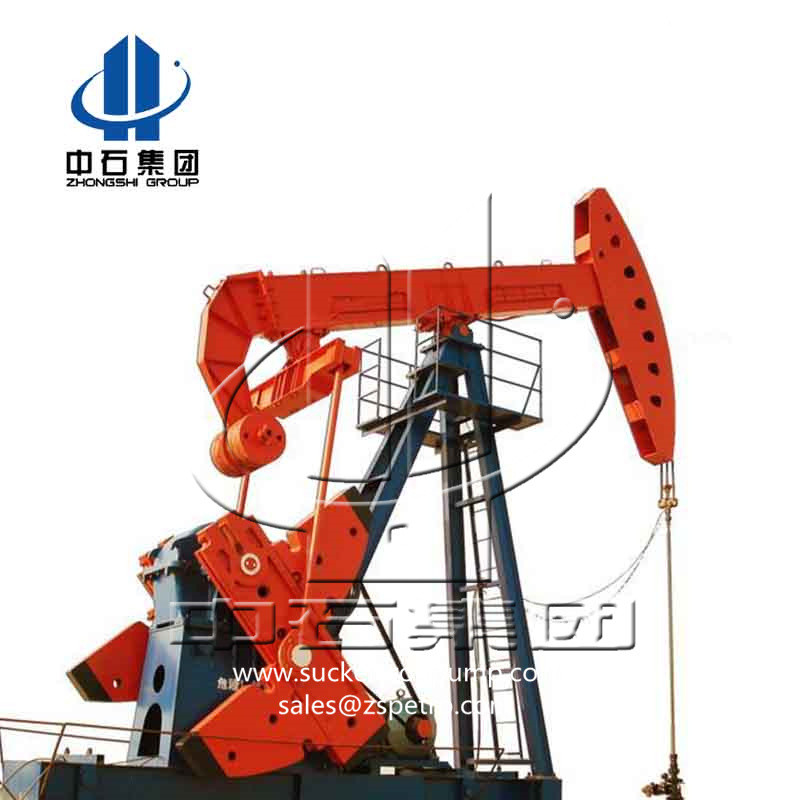

Pumping unit is a kind of machinery and equipment for oil exploitation, commonly known as "kowtow machine", which makes oil come out of the well by pressurizing. When the pumping unit upstrokes, the tubing elastically shrinks and moves upward, driving the mechanical plug removal oil extractor to move upward, impacting the sliding sleeve to produce vibration; At the same time, the positive single flow valve is closed, and the variable diameter piston assembly blocks the oil. When the pumping unit is under stroke, the elastic extension of the oil pipe moves downward, driving the mechanical plug removal oil extractor to move downward, impacting the sliding sleeve to produce vibration; At the same time, the reverse single flow valve is partially closed, and the reducing piston assembly still blocks the annular oil passage of the oil jacket, forming a high-pressure area under the reverse single flow valve. This movement produces a reverse impact on the oil flow passage in the formation.
| 序号 | 型 号 | 额定悬点载荷 | 冲 程 | 减速箱额定扭矩 |
| kN | IN | kN.m | ||
| 1 | C-912D-470-240 | 47,000 | 240,211,181 | 912,000 |
| 2 | C-912D-427-216 | 42,700 | 216,185,155 | 912,000 |
| 3 | C-912D-427-192 | 42,700 | 192,165,138 | 912,000 |
| 4 | C-912D-305-192 | 30,500 | 192,165,138 | 912,000 |
| 5 | C-912D-365-168 | 36,500 | 168,144,121 | 912,000 |
| 6 | C-912D-305-168 | 30,500 | 168,144,121 | 912,000 |
| 7 | C-912D-427-144 | 42,700 | 144,123,102 | 912,000 |
| 8 | C-640D-305-192 | 30,500 | 192,165,138 | 640,000 |
| 9 | C-640D-305-168 | 30,500 | 168,144,121 | 640,000 |
| 10 | C-640D-365-144 | 36,500 | 144,123,102 | 640,000 |
| 11 | C-640D-305-144 | 30,500 | 144,123,102 | 640,000 |
| 12 | C-640D-256-144 | 25,600 | 144,123,102 | 640,000 |
| 13 | C-640D-305-120 | 30,500 | 120,102,84 | 640,000 |
| 14 | C-456D-305-168 | 30,500 | 168,144,121 | 57,000 |
| 15 | C-456D-305-144 | 30,500 | 144,123,102 | 40,000 |
| 16 | C-456D-256-144 | 25,600 | 144,123,102 | 57,000 |
| 17 | C-456D-365-120 | 36,500 | 120,102,84 | 40,000 |
| 18 | C-456D-305-120 | 30,500 | 120,102,84 | 25,000 |
| 19 | C-456D-256-120 | 25,600 | 120,102,84 | 25,000 |
| 20 | C-320D-256-144 | 25,600 | 144,123,102 | 320,000 |
| 21 | C-320D-256-120 | 25,600 | 120,102,84 | 320,000 |
| 22 | C-320D-213-120 | 21,300 | 120,102,84 | 320,000 |
| 23 | C-320D-305-100 | 30,500 | 100,85,70 | 320,000 |
| 24 | C-320D-256-100 | 25,600 | 100,85,70 | 320,000 |
| 25 | C-320D-213-86 | 21,300 | 86,71,56 | 320,000 |
| 26 | C-228D-213-120 | 21,300 | 120,102,84 | 228,000 |
| 27 | C-228D-173-100 | 17,300 | 100,86,72 | 228,000 |
| 28 | C-228D-246-86 | 24,600 | 86,71,56 | 228,000 |
| 29 | C-228D-213-86 | 21,300 | 86,71,56 | 228,000 |
| 30 | C-228D-200-74 | 20,000 | 74,64,54 | 228,000 |
| 31 | C-228D-173-74 | 17,300 | 74,64,54 | 228,000 |
| 32 | C-160D-173-86 | 17,300 | 86,74,62 | 160,000 |
| 33 | C-160D-200-74 | 20,000 | 74,64,54 | 160,000 |
| 34 | C-160D-173-74 | 17,300 | 74,64,54 | 160,000 |
| 35 | C-160D-143-74 | 14,300 | 74,64,54 | 160,000 |
| 36 | C-160D-173-64 | 17,300 | 64,54,44 | 160,000 |
| 37 | C-114D-119-86 | 11,900 | 86,72,59 | 114,000 |
| 38 | C-114D-143-74 | 14,300 | 74,62,51 | 114,000 |
| 39 | C-114D-173-64 | 17,300 | 64,54,44 | 114,000 |
| 40 | C-114D-143-64 | 14,300 | 64,52,40 | 114,000 |
| 41 | C-114D-133-54 | 13,300 | 54,45,36 | 114,000 |
| 42 | C-80D-119-64 | 11,900 | 64,53,42 | 80,000 |
| 43 | C-80D-133-54 | 13,300 | 54,45,36 | 80,000 |
| 44 | C-80D-119-54 | 11,900 | 54,45,36 | 80,000 |
| 45 | C-80D-133-48 | 13,300 | 48,40,32 | 80,000 |
| 46 | C-80D-109-48 | 10,900 | 48,37,25 | 80,000 |
| 47 | C-57D-76-54 | 7,600 | 54,41,28 | 57,000 |
| 48 | C-57D-109-48 | 10,900 | 48,37,25 | 57,000 |
| 49 | C-57D-95-48 | 9,500 | 48,37,25 | 57,000 |
| 50 | C-57D-89-42 | 8,900 | 42,33,23 | 57,000 |
| 51 | C-57D-76-42 | 7,600 | 42,33,23 | 57,000 |
| 52 | C-40D-76-48 | 7,600 | 48,37,27 | 40,000 |
| 53 | C-40D-89-42 | 8,900 | 42,33,23 | 40,000 |
| 54 | C-40D-76-42 | 7,600 | 42,33,23 | 40,000 |
| 55 | C-40D-89-36 | 8,900 | 36,28,20 | 40,000 |
| 56 | C-25D-67-36 | 6,700 | 36,28,20 | 25,000 |
| 57 | C-25D-56-36 | 5,600 | 36,28,20 | 25,000 |
| 58 | C-25D-53-30 | 5,300 | 30,20 | 25,000 |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
