Product Details
Place of Origin: China
Brand Name: PUYANGZHONGSHI
Certification: API 11E-0065
Model Number: API or customized
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD12000-30000$/pcs
Packaging Details: standard package
Delivery Time: 30-60 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 pcs one month
Standard: |
API 11E-0065 |
Application: |
Petroleum Production |
Type: |
Other |
Material: |
Carbon Steel |
Usage: |
Oil Field |
Name: |
Pumping Unit |
Power: |
Machanical Energy |
Standard: |
API 11E-0065 |
Application: |
Petroleum Production |
Type: |
Other |
Material: |
Carbon Steel |
Usage: |
Oil Field |
Name: |
Pumping Unit |
Power: |
Machanical Energy |
Product Name: API 11e C series pumping unit

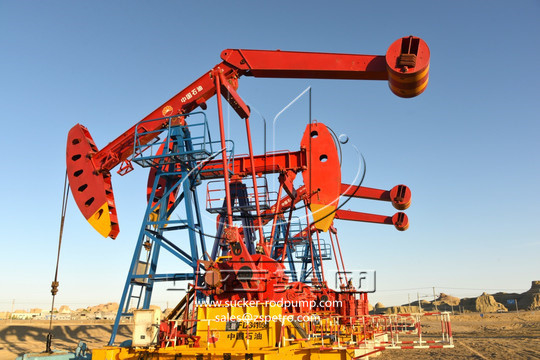

Product overview: API C series pumping unit is a conventional beam pumping unit, which adopts the crank balance method. It is the most common and widely used ground power equipment in rod oil production in the oilfield.
The product complies with API Spec 11e specification for pumping units and other relevant standards, and has obtained the license to use API monogram.
Performance characteristics: 1. Design with modularization and virtual manufacturing technology, product structure optimization, and high degree of "standardization, generalization, and serialization" of components.
2. The key structural parts are analyzed and studied by finite element method, which has stable performance and high reliability.
3. The reducer adopts symmetrical split involute or double arc herringbone gear transmission, which has good sealing, low noise, stable operation, reliability and durability.
4. The whole machine has the advantages of simple operation, convenient maintenance and long service life.
序号 | 型 号 | 额定悬点载荷 | 冲 程 | 减速箱额定扭矩 |
kN | IN | kN.m | ||
1 | C-912D-470-240 | 47,000 | 240,211,181 | 912,000 |
2 | C-912D-427-216 | 42,700 | 216,185,155 | 912,000 |
3 | C-912D-427-192 | 42,700 | 192,165,138 | 912,000 |
4 | C-912D-305-192 | 30,500 | 192,165,138 | 912,000 |
5 | C-912D-365-168 | 36,500 | 168,144,121 | 912,000 |
6 | C-912D-305-168 | 30,500 | 168,144,121 | 912,000 |
7 | C-912D-427-144 | 42,700 | 144,123,102 | 912,000 |
8 | C-640D-305-192 | 30,500 | 192,165,138 | 640,000 |
9 | C-640D-305-168 | 30,500 | 168,144,121 | 640,000 |
10 | C-640D-365-144 | 36,500 | 144,123,102 | 640,000 |
11 | C-640D-305-144 | 30,500 | 144,123,102 | 640,000 |
12 | C-640D-256-144 | 25,600 | 144,123,102 | 640,000 |
13 | C-640D-305-120 | 30,500 | 120,102,84 | 640,000 |
14 | C-456D-305-168 | 30,500 | 168,144,121 | 57,000 |
15 | C-456D-305-144 | 30,500 | 144,123,102 | 40,000 |
16 | C-456D-256-144 | 25,600 | 144,123,102 | 57,000 |
17 | C-456D-365-120 | 36,500 | 120,102,84 | 40,000 |
18 | C-456D-305-120 | 30,500 | 120,102,84 | 25,000 |
19 | C-456D-256-120 | 25,600 | 120,102,84 | 25,000 |
20 | C-320D-256-144 | 25,600 | 144,123,102 | 320,000 |
21 | C-320D-256-120 | 25,600 | 120,102,84 | 320,000 |
22 | C-320D-213-120 | 21,300 | 120,102,84 | 320,000 |
23 | C-320D-305-100 | 30,500 | 100,85,70 | 320,000 |
24 | C-320D-256-100 | 25,600 | 100,85,70 | 320,000 |
25 | C-320D-213-86 | 21,300 | 86,71,56 | 320,000 |
26 | C-228D-213-120 | 21,300 | 120,102,84 | 228,000 |
27 | C-228D-173-100 | 17,300 | 100,86,72 | 228,000 |
28 | C-228D-246-86 | 24,600 | 86,71,56 | 228,000 |
29 | C-228D-213-86 | 21,300 | 86,71,56 | 228,000 |
30 | C-228D-200-74 | 20,000 | 74,64,54 | 228,000 |
31 | C-228D-173-74 | 17,300 | 74,64,54 | 228,000 |
32 | C-160D-173-86 | 17,300 | 86,74,62 | 160,000 |
33 | C-160D-200-74 | 20,000 | 74,64,54 | 160,000 |
34 | C-160D-173-74 | 17,300 | 74,64,54 | 160,000 |
35 | C-160D-143-74 | 14,300 | 74,64,54 | 160,000 |
36 | C-160D-173-64 | 17,300 | 64,54,44 | 160,000 |
37 | C-114D-119-86 | 11,900 | 86,72,59 | 114,000 |
38 | C-114D-143-74 | 14,300 | 74,62,51 | 114,000 |
39 | C-114D-173-64 | 17,300 | 64,54,44 | 114,000 |
40 | C-114D-143-64 | 14,300 | 64,52,40 | 114,000 |
41 | C-114D-133-54 | 13,300 | 54,45,36 | 114,000 |
42 | C-80D-119-64 | 11,900 | 64,53,42 | 80,000 |
43 | C-80D-133-54 | 13,300 | 54,45,36 | 80,000 |
44 | C-80D-119-54 | 11,900 | 54,45,36 | 80,000 |
45 | C-80D-133-48 | 13,300 | 48,40,32 | 80,000 |
46 | C-80D-109-48 | 10,900 | 48,37,25 | 80,000 |
47 | C-57D-76-54 | 7,600 | 54,41,28 | 57,000 |
48 | C-57D-109-48 | 10,900 | 48,37,25 | 57,000 |
49 | C-57D-95-48 | 9,500 | 48,37,25 | 57,000 |
50 | C-57D-89-42 | 8,900 | 42,33,23 | 57,000 |
51 | C-57D-76-42 | 7,600 | 42,33,23 | 57,000 |
52 | C-40D-76-48 | 7,600 | 48,37,27 | 40,000 |
53 | C-40D-89-42 | 8,900 | 42,33,23 | 40,000 |
54 | C-40D-76-42 | 7,600 | 42,33,23 | 40,000 |
55 | C-40D-89-36 | 8,900 | 36,28,20 | 40,000 |
56 | C-25D-67-36 | 6,700 | 36,28,20 | 25,000 |
57 | C-25D-56-36 | 5,600 | 36,28,20 | 25,000 |
58 | C-25D-53-30 | 5,300 | 30,20 | 25,000 |
