10D API Rigid Spiral Casing Centralizer Integral Type Rigid Centralizer

10D API Rigid Spiral Casing Centralizer Integral Type Rigid Centralizer
10D API Rigid Spiral Casing Centralizer Integral Type Rigid Centralizer 10D API Rigid Spiral Casing Centralizer Integral Type Rigid Centralizer 10D API Rigid Spiral Casing Centralizer Integral Type Rigid Centralizer

Large Image :  10D API Rigid Spiral Casing Centralizer Integral Type Rigid Centralizer

Product Details:

Place of Origin: Puyang city , Henan province ,China
Brand Name: PUYANGZHONGSHI
Certification: API 5CT 1415,API 10D
Model Number: API or customized

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD20-80$/pcs
Packaging Details: wooden cases
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs one month
Detailed Product Description
Standard: API 5CT,API 10D Type: Cementing Tool
Size: 5 1/2--20'' Material: Spring Steel 65Mn, 65Mn Steel, Or Others
Color: Red
High Light:

Integral Type Rigid Centralizer

,

Spiral Roller Centralizers

,

Rigid Casing Centralizer 10D

Centralizer introduction :

Casing centralizer is an important cementing tool which could help the casing put into the borehole smoothly and center the casing in the hole. The size of casing centralizer is 4" to 20". There are two kinds of bow spring centralizer and rigid centralizer.




10D API Rigid Spiral Casing Centralizer Integral Type Rigid Centralizer 0
Size Range
* The Single Piece Bow Spring Centralizers are available in sizes 4½" to 20".
* Any special sizes or combination can be made available on request.

Slip on Single Piece Casing Centralizer

API single piece centralizer performs satisfactorily in open hole as well as cased hole.These high quanlity product,developed to meet and exceed API 10D specifications for use in highly demanding downhole conditions.Single piece centralizer combines the highest restoring force with zero start force and zero running force.The single piece centralizer is used to position the casing in the center of the wellbore in vertical deviated and horizontal wells.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
10D API Rigid Spiral Casing Centralizer Integral Type Rigid Centralizer 1
Size Range
Non-welded Hinged Bow Spring Centralizers are available in the sizes 2 ⅞" to 36"
Special sizes or combinations can be made available on request

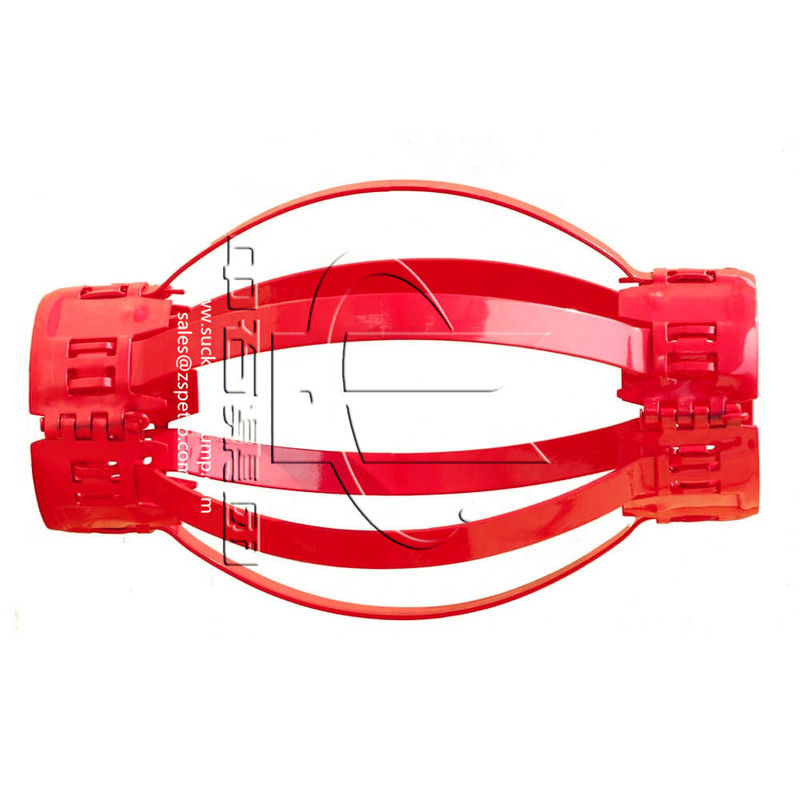

Hinged Non-weld Bow Spring Centralizer

Hinged Non-welded Bow Spring Centralizer is used to position the casing in the centre of the wellbore in both vertical and
deviated wells. These Bow Spring Centralizers reduce the effect of channelling by improving cement flow. This results in a highly uniform thickness between the casing and the wellbore. These centralizers are able to minimise gas channeling by reducing the movement of the pipe before the cement sets in. Additionally, these bow spring centralizers provide a semi-rigid casing standoff.
A non-welded design features the self-locking of lips for holding bows to end collars. Bows of special alloy steel are hot-formed and then tempered for optimum strength, resilience, and uniformity.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
10D API Rigid Spiral Casing Centralizer Integral Type Rigid Centralizer 2
Size Range
* The Non welded hinged positive bow Simi Rigid centralizers are available in sizes 4 ½" to 30”
* Special sizes or combination can be made available on request

Hinged Non Welded Simi Rigid Casing Centralizer

Hinged Non Weld Semi Rigid Centralizers are uniquely designed with a flat-bottom U-profile of different depths, which permit an extremely high fluid passage. These positive centralizers may be used for both casing and tubing applications that require concentric casing strings. The straight bows provide nearly 100% stand-off (concentricity) when running inside a deviated cased hole, while the self-locking design of the centralizer ensures a firm hold. Furthermore, the non-welded structure eliminates brittle spots and enhances durability.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
10D API Rigid Spiral Casing Centralizer Integral Type Rigid Centralizer 3
Size Range
* Solid Rigid Stamped Casing Centralizers are available in sizes 4 ½" to 13 ⅜”
* Special sizes or combination can be made available on request
* Available with straight or spiral blades

(1) Welded casing centralizer

Weld casing centralizer specification

Model Hooping In-Dia. Hooping Thickness Hooping Height Total Length Max. Out-Dia. Spring Pieces
in mm mm mm mm mm pcs
5-1/2*8-1/2 142-148 5-7 50-60 650±50 225±5 5
6*8-1/2 154-158 5-7 50-60 650±50 255±5 5
13-3/8*17-1/2 342-349 8 50-60 580 450±5 6
20*26 510-518 8 50-60 650±50 670±5 10





(2) Non-welded casing centralizer

Non-weld casing centralizer specification

Model Hooping In-Dia. Hooping Thickness Hooping Height Total Length Max. Out-Dia. Spring Pieces
in mm mm mm mm mm pcs
5-1/2*8-1/2 142-148 3-5 90-120 650±50 225±5 5
7*9-5/8 181-186 3-5 90-120 650±50 255±5 6
7*8-1/2 181-186 3-5 90-120 650±50 235±5 6
8-5/8*12-1/4 223-228 3-5 90-120 650±50 330±5 8
9-5/8*12-1/4 250-255 3-5 90-120 650±50 330±5 8
10-3/4*12-1/4 274-276 3-5 90-120 650±50 330±5 9
13-3/8*17-1/2 342-347 3-5 90-120 650±50 450±5 11
18-5/8*24 476±1 3-5 90-120 600±50 610±5 12
20*26 510±1 3-5 90-120 600±50 660±5 12



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
