Product Details
Place of Origin: Puyang city , Henan province ,China
Brand Name: PUYANGZHONGSHI
Certification: API 5CT 1415，API 10D
Model Number: API or customized
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: USD20-80$/pcs
Packaging Details: wooden cases
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs one month
Size: |
5 1/2--20'' |
Warranty: |
12 Months |
Condition: |
New |
Advantage: |
Anti-Corrosion & Anti-Abrasion |
Material: |
Q320/65Mn Etc |
Use: |
Cementing Tool |
Size: |
5 1/2--20'' |
Warranty: |
12 Months |
Condition: |
New |
Advantage: |
Anti-Corrosion & Anti-Abrasion |
Material: |
Q320/65Mn Etc |
Use: |
Cementing Tool |

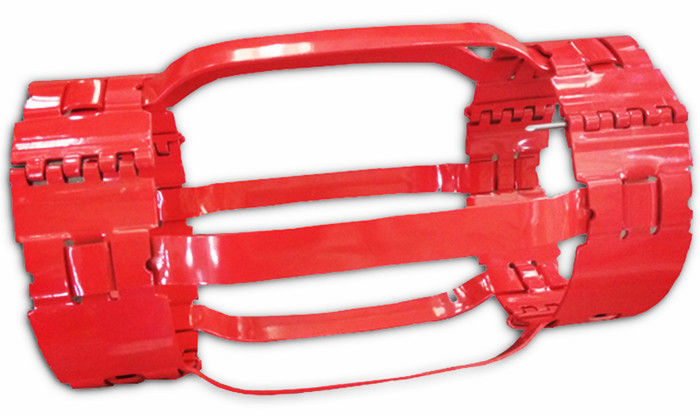

Api standard ridgid spring casing centralizer/Integral stamping ridgid spring centralizer
1.Description:
Solid body casing centralizer is developed specially for horizontal and extended reach wells with Up to 50% lower coefficient of friction over steel centralizers. It enables casing strings to reach total depth efficiently while providing good standoff for optimal mud displacement and greatly enhancing cementing operations.
API 10 D casing rigid roller centralizer for sale
Top wire casing rigid roller centralizer are an integral part of the cementing process. They provide the mechanism that centers the casing in the hole and allows uniform cement flow around the casing to help protect it at all points. Several styles of centralizers are available for matching different well specifications and hole sizes, including turbulence generating designs that help clean the annulus and distribute the cement more evenly and uniformly. All models offer ample clearance for fluid passage and are extra effective in centering the casing, even in highly deviated holes and improve cement flow by reducing the effects of channeling.
The top wire casing rigid roller centralizer consists of a rigid body, on which machined five spiral blades. There are three or four modified alloy steel, fully heat treated rollers fixed on every spiral blades. The assembly is shown as following fig. Because of rigid body and rolling friction between the rollers and inside of well or casing, the capability of the top wire casing rigid roller centralizer is better than others of all. Recommend to use the tool in deviated holes and horizontal holes.
2,Specifications
(1) Welded casing centralizer
Weld casing centralizer specification
| Model | Hooping In-Dia. | Hooping Thickness | Hooping Height | Total Length | Max. Out-Dia. | Spring Pieces |
| in | mm | mm | mm | mm | mm | pcs |
| 5-1/2*8-1/2 | 142-148 | 5-7 | 50-60 | 650±50 | 225±5 | 5 |
| 6*8-1/2 | 154-158 | 5-7 | 50-60 | 650±50 | 255±5 | 5 |
| 13-3/8*17-1/2 | 342-349 | 8 | 50-60 | 580 | 450±5 | 6 |
| 20*26 | 510-518 | 8 | 50-60 | 650±50 | 670±5 | 10 |
(2) Non-welded casing centralizer
Non-weld casing centralizer specification
| Model | Hooping In-Dia. | Hooping Thickness | Hooping Height | Total Length | Max. Out-Dia. | Spring Pieces |
| in | mm | mm | mm | mm | mm | pcs |
| 5-1/2*8-1/2 | 142-148 | 3-5 | 90-120 | 650±50 | 225±5 | 5 |
| 7*9-5/8 | 181-186 | 3-5 | 90-120 | 650±50 | 255±5 | 6 |
| 7*8-1/2 | 181-186 | 3-5 | 90-120 | 650±50 | 235±5 | 6 |
| 8-5/8*12-1/4 | 223-228 | 3-5 | 90-120 | 650±50 | 330±5 | 8 |
| 9-5/8*12-1/4 | 250-255 | 3-5 | 90-120 | 650±50 | 330±5 | 8 |
| 10-3/4*12-1/4 | 274-276 | 3-5 | 90-120 | 650±50 | 330±5 | 9 |
| 13-3/8*17-1/2 | 342-347 | 3-5 | 90-120 | 650±50 | 450±5 | 11 |
