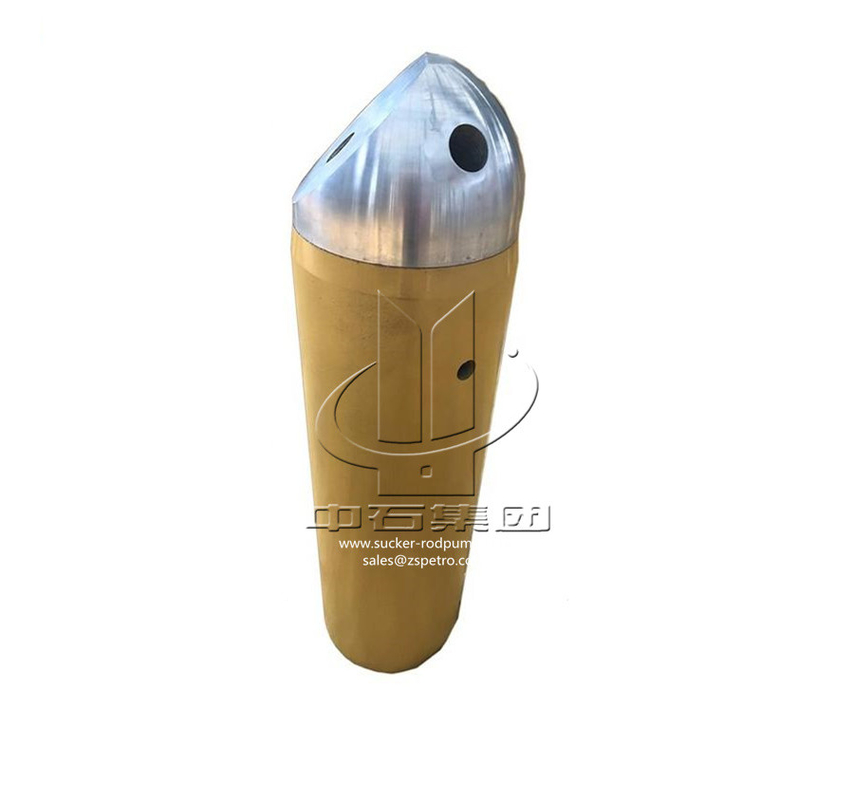

Oilfield Guide Shoe With Drillable Aluminum Nose

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~36"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price
High Light:

Oilfield Guide Shoe

,

Aluminum Nose Guide Shoe

,

Drillable Casing Float Shoe

Product:
Oilfield Guide Shoe With Drillable Aluminum Nose
Feature:
Aluminum Eccentric Nose
Connection:
API Thread
Material:
P-110, K55, J55, N80
Belt:
With Wear-band
Tungsten Carbides:
Chunky Grain Type And Button Insert Type
Product:
Oilfield Guide Shoe With Drillable Aluminum Nose
Feature:
Aluminum Eccentric Nose
Connection:
API Thread
Material:
P-110, K55, J55, N80
Belt:
With Wear-band
Tungsten Carbides:
Chunky Grain Type And Button Insert Type
Oilfield Guide Shoe With Drillable Aluminum Nose

Oilfield Guide shoe with Drillable Aluminum Nose



Reamer shoe system is a casing shoe that overcomes wellbore obstructions to guide casing or liners to total depth



Oilfield Guide shoe with Drillable Aluminum Nose Features



  • 5,000 & 10,000psi Valves Available
  • Double Valve Option Available
  • Autofill Option Available
  • New and Improved cementing process for valve retention



Oilfield Guide shoe with Drillable Aluminum Nose Specification

Size (in) Bore O.D (in) Bore I.D (in) Min.Bore Parameter (in) Thread Type Ib (in 2)
5 1/ 2” 6” 4 3/ 4” 2” 5 1/ 2” LCSG 4351
7” 7 5/ 8” 6 1/ 4” 2 3/ 8” 7” LCSG 3626
9 5/ 8” 10 5/ 8” 8 5/ 8” 2 3/ 8” 9 5/ 8” LCSG 3626
13 3/ 8” 14 3/ 8” 12 3/ 8” 2 3/ 8” 13 3/ 8” LCSG 3626
