Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
API 11AX Ceramic Ball Valve Seat For Sucker Rod Pump |
Material: |
Ceramics |
Application: |
Sparepart Of Sucker Rod Pump |
Processing Type: |
Casting |
Warranty Of Core Components: |
1 Year |
Product: |
API 11AX Ceramic Ball Valve Seat For Sucker Rod Pump |
Material: |
Ceramics |
Application: |
Sparepart Of Sucker Rod Pump |
Processing Type: |
Casting |
Warranty Of Core Components: |
1 Year |

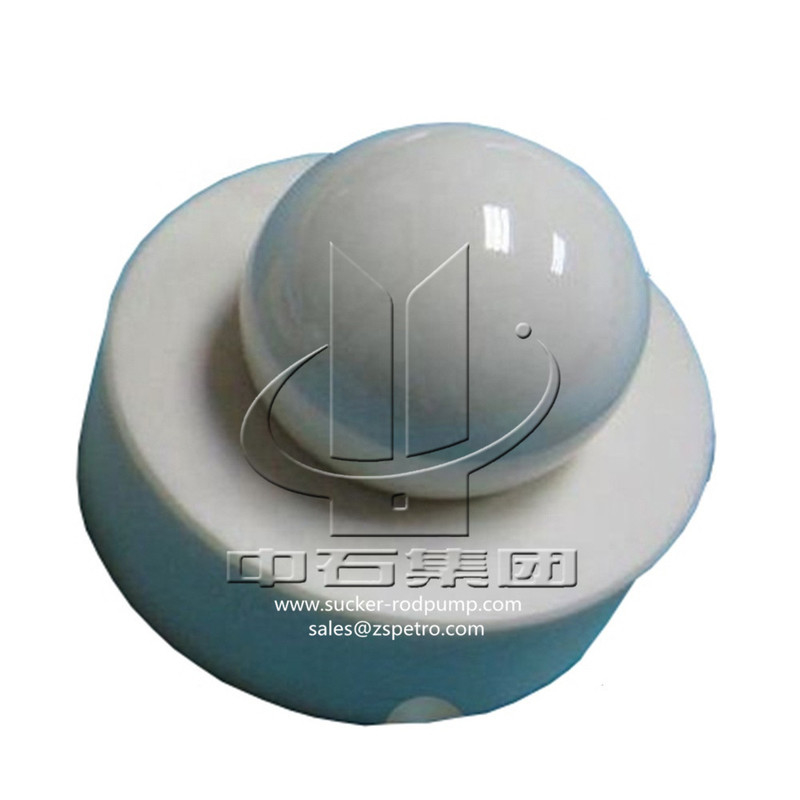

API 11AX Ceramic Ball Valve Seat for Sucker Rod Pump
We provide different material and structure of the valve cage according to different well conditions. For different material of the valve cage, we have different heat treatment process, to ensure the safety of the use and its mechanical properties.
1045 Steel Tungsten Carbide Valve Ball And Seat For Sucker Rod Pumps Specification
| Size of ball(mm) | Size of ball(mm) | Size of ball seat(mm) | Size of ball seat(mm) |
| Ø19.05 | Ø19.05 | Ø13* Ø15*12 | Ø23.32* Ø15*12.7 |
| Ø22.2 | Ø23.83 | Ø28* Ø18*12 | Ø29.67* Ø18.2*12.7 |
| Ø25 | Ø28.58 | Ø28* Ø19*12 | Ø35.26* Ø22.2*12.7 |
| Ø25.4 | Ø34.93 | Ø30* Ø18*12 | Ø43.69* Ø27.4*12.7 |
| Ø29 | Ø42.88 | Ø34* Ø23*12 | Ø51.05* Ø33.6*12.7 |
| Ø32 | Ø50.8 | Ø47* Ø27*12.7 | Ø67* Ø39.9*19.1 |
| Ø35 | Ø57.15 | Ø44* Ø27*15 | Ø67* Ø44.8*19.1 |
| Ø38 | Ø63.5 | Ø55* Ø30*20 | Ø78.4* Ø49.8*19.1 |
| Ø45 | Ø69.85 | Ø55* Ø36*15 | Ø91.1* Ø54.8*19.1 |
| Ø50 | Ø74.61 | Ø65* Ø40*20 | Ø88* Ø63.5*20 |
| Ø50.8 | Ø67* Ø41*15 | ||
| Ø55 | Ø67* Ø45*20 | ||
| Ø60.325 | Ø77* Ø50.5*20 | ||
| Other size as client’s request | |||
