Name: Tungsten Carbide Ball Valve Seat For Sucker Rod Pump
Brand: Puyang Zhongshi Group
SKU: 4 1/2"~36"
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (171 reviews)

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~36"

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price

Product Details

Product Description

High Light:
                                                                                                                                                                                                                Sucker Rod Pump Tungsten Carbide Ball, Downhole Rod Pump Valve Seat, Tungsten Carbide Ball Valve Seat


Product:	Tungsten Carbide Ball And Valve Seat For Sucker Rod Pump	Material:	Stainless Steel
Application:	Sparepart Of Sucker Rod Pump	Processing Type:	Casting
Surface:	Tungsten Carbide

Product:	Tungsten Carbide Ball And Valve Seat For Sucker Rod Pump
Material:	Stainless Steel
Application:	Sparepart Of Sucker Rod Pump
Processing Type:	Casting
Surface:	Tungsten Carbide

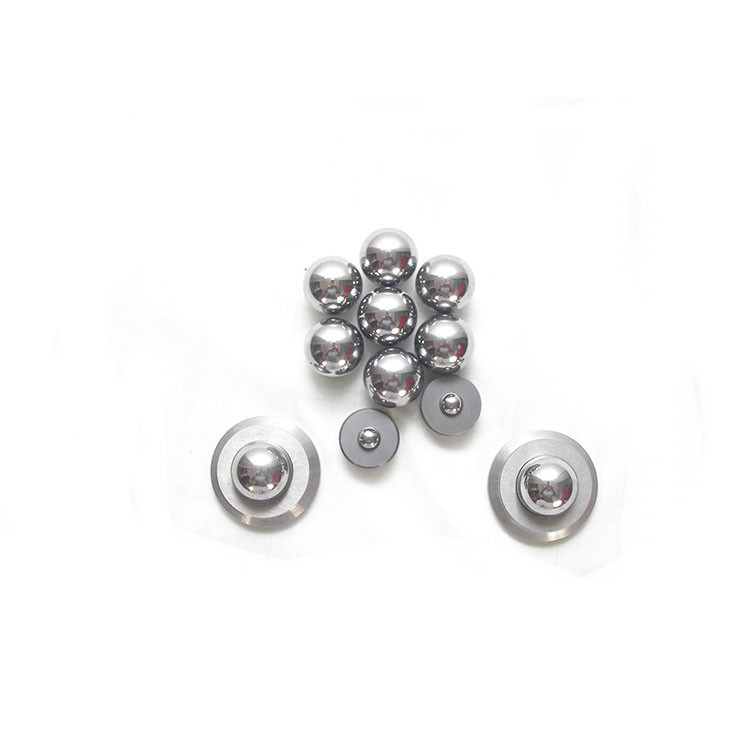

Tungsten Carbide Ball Valve Seat For Sucker Rod Pump

Tungsten Carbide Ball And Valve Seat for Sucker Rod Pump

Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of contact.For sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells

Tungsten Carbide Ball And Valve Seat for Sucker Rod Pump Features

Available forms: end product or blank;
Properties: good resistance against corrosion and oxidation;
Main application: extensively used in petrochemical industry, marine exploration, heat exchanger and pump;
Processing: investment casting;
Maximum weight

Tungsten Carbide Ball And Valve Seat for Sucker Rod Pump Specification

Size of ball(mm)	Size of ball(mm)	Size of ball seat(mm)	Size of ball seat(mm)
Ø19.05	Ø19.05	Ø13* Ø15*12	Ø23.32* Ø15*12.7
Ø22.2	Ø23.83	Ø28* Ø18*12	Ø29.67* Ø18.2*12.7
Ø25	Ø28.58	Ø28* Ø19*12	Ø35.26* Ø22.2*12.7
Ø25.4	Ø34.93	Ø30* Ø18*12	Ø43.69* Ø27.4*12.7
Ø29	Ø42.88	Ø34* Ø23*12	Ø51.05* Ø33.6*12.7
Ø32	Ø50.8	Ø47* Ø27*12.7	Ø67* Ø39.9*19.1
Ø35	Ø57.15	Ø44* Ø27*15	Ø67* Ø44.8*19.1
Ø38	Ø63.5	Ø55* Ø30*20	Ø78.4* Ø49.8*19.1
Ø45	Ø69.85	Ø55* Ø36*15	Ø91.1* Ø54.8*19.1
Ø50	Ø74.61	Ø65* Ø40*20	Ø88* Ø63.5*20
Ø50.8		Ø67* Ø41*15
Ø55		Ø67* Ø45*20
Ø60.325		Ø77* Ø50.5*20
Other size as client’s request
