Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Cement Basket |
Material: |
Stainless Steel |
Size: |
4 1/2~24 Inch |
Pressure: |
21-70Mpa |
Bow Number: |
10~34 |
Type: |
Umbrella Type |
Product: |
Cement Basket |
Material: |
Stainless Steel |
Size: |
4 1/2~24 Inch |
Pressure: |
21-70Mpa |
Bow Number: |
10~34 |
Type: |
Umbrella Type |

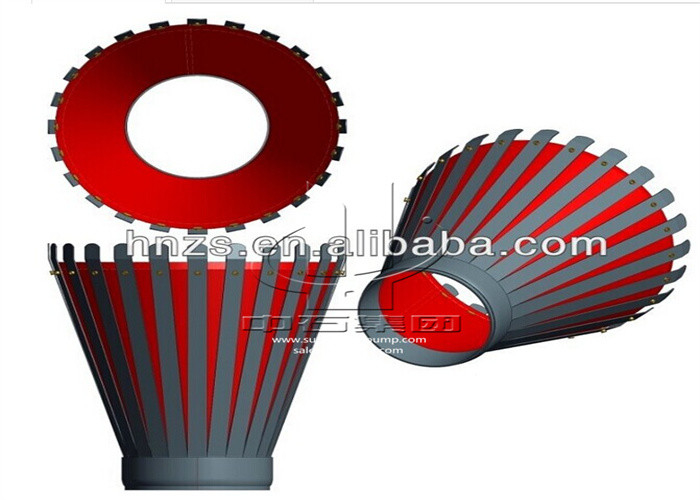

API 20 inch Cementing Tools Cement Basket With Carbon Steel Material
Cementing Baskets
Puyang zhongshi group Cementing Baskets are constructed of flexible spring steel ribs and reinforced rubber overlapping liners. Cementing Baskets may be run on casing, tubing or liners, and are designed to seal off zones below the basket from contamination by cement slurry. The cementing basket can be slipped on over the run-in string, and its position is determined either by couplings at the ends of the joint or by Casing
| Casing Size, in | No. Of Bows | Total Length, in | Basket O.D. | Min. Hole Size, in | |
| in | mm | ||||
| 4 1/2 | 10 | 24 1/2 | 12 1/2 | 317.5 | 6 |
| 5 | 10 | 24 1/2 | 13 | 342.9 | 6 |
| 5 1/2 | 12 | 24 1/2 | 13 1/2 | 342.9 | 7 1/4 |
| 6 5/8 | 12 | 24 1/2 | 14 5/8 | 371.5 | 8 3/8 |
| 7 | 14 | 24 1/2 | 15 | 381 | 8 3/8 |
| 7 5/8 | 14 | 24 1/2 | 15 3/8 | 396.9 | 9 1/2 |
| 8 5/8 | 16 | 24 1/2 | 16 5/8 | 422.3 | 10 5/8 |
| 9 5/8 | 18 | 24 1/2 | 17 5/8 | 447.7 | 11 5/8 |
| 10 3/4 | 18 | 24 1/2 | 18 3/4 | 476.3 | 12 3/4 |
| 11 3/4 | 20 | 24 1/2 | 19 3/4 | 501.7 | 13 3/4 |
| 11 3/8 | 24 | 24 1/2 | 21 3/8 | 542.9 | 15 1/2 |
| 16 | 28 | 24 1/2 | 24 | 609.6 | 18 |
| 18 5/8 | 34 | 24 1/2 | 26 5/8 | 676.3 | 20 5/8 |
| 20 | 34 | 24 1/2 | 28 | 711.2 | 22 |
