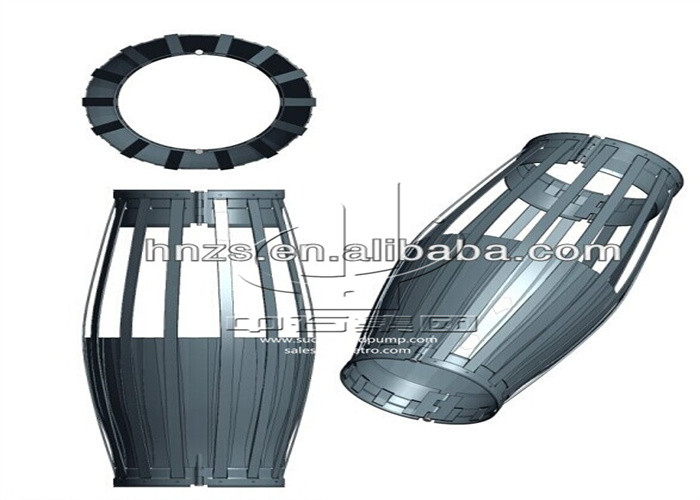

Heat Treated Oilfield Cementing Tools Flexible Bow Springs Basket

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~20"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price
High Light:

Flexible Bow Springs

,

Oilfield Cementing Bow Springs

,

Heat Treated Oilfield Cement Baskets

Product:
Cement Basket
Material:
Stainless Steel
Size:
4 1/2~24 Inch
Pressure:
21-70Mpa
Bow Number:
10~34
Type:
Umbrella Type
Product:
Cement Basket
Material:
Stainless Steel
Size:
4 1/2~24 Inch
Pressure:
21-70Mpa
Bow Number:
10~34
Type:
Umbrella Type
Heat Treated Oilfield Cementing Tools Flexible Bow Springs Basket

API Cement Basket Flexible Bow Springs Heat-treated



Features



1. Non-welded, pressed by punching, high strength.

2. Can be unfolded and stacked flatly, saving storage and transportation cost.

3. Compared with single bow centralizer, the restoring force is higher while the starting force and running force are lower.Therefore, it can be run in vertical, highly-deviated and horizontal wells.

4. Hinged design allows convenient field installation.



API Oilfield Umbrella Type Cement Basket Specification



Casing Size, in No. Of Bows Total Length, in Basket O.D. Min. Hole Size, in
in mm
4 1/2 10 24 1/2 12 1/2 317.5 6
5 10 24 1/2 13 342.9 6
5 1/2 12 24 1/2 13 1/2 342.9 7 1/4
6 5/8 12 24 1/2 14 5/8 371.5 8 3/8
7 14 24 1/2 15 381 8 3/8
7 5/8 14 24 1/2 15 3/8 396.9 9 1/2
8 5/8 16 24 1/2 16 5/8 422.3 10 5/8
9 5/8 18 24 1/2 17 5/8 447.7 11 5/8
10 3/4 18 24 1/2 18 3/4 476.3 12 3/4
11 3/4 20 24 1/2 19 3/4 501.7 13 3/4
11 3/8 24 24 1/2 21 3/8 542.9 15 1/2
16 28 24 1/2 24 609.6 18
18 5/8 34 24 1/2 26 5/8 676.3 20 5/8
20 34 24 1/2 28 711.2 22
