Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Cement Basket |
Material: |
Stainless Steel |
Size: |
4 1/2~24 Inch |
Pressure: |
21-70Mpa |
Bow Number: |
10~34 |
Type: |
Umbrella Type |
Product: |
Cement Basket |
Material: |
Stainless Steel |
Size: |
4 1/2~24 Inch |
Pressure: |
21-70Mpa |
Bow Number: |
10~34 |
Type: |
Umbrella Type |

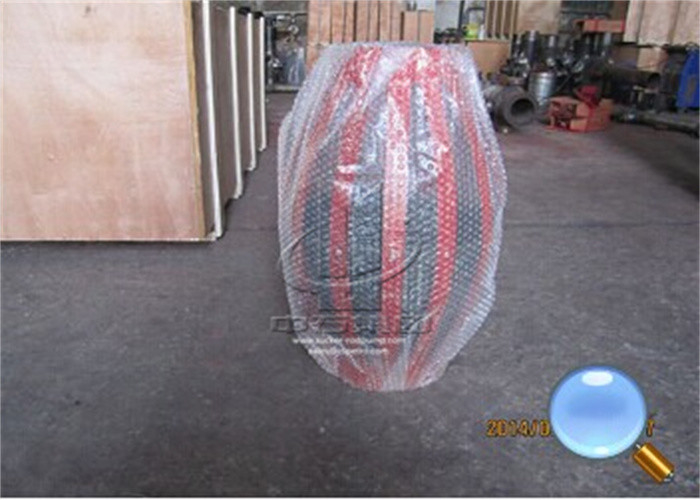

API Canvas Cement Baskets Includes Heavy Duty Canvas Liners High Strength Springs
Features
1. Non-welded, pressed by punching, high strength.
2. Hinged design allows convenient field installation.
3. Compared with single bow centralizer, the restoring force is higher while the starting force and running force are lower.Therefore, it can be run in vertical, highly-deviated and horizontal wells.
4. Can be unfolded and stacked flatly, saving storage and transportation cost.
| Casing Size, in | No. Of Bows | Total Length, in | Basket O.D. | Min. Hole Size, in | |
| in | mm | ||||
| 4 1/2 | 10 | 24 1/2 | 12 1/2 | 317.5 | 6 |
| 5 | 10 | 24 1/2 | 13 | 342.9 | 6 |
| 5 1/2 | 12 | 24 1/2 | 13 1/2 | 342.9 | 7 1/4 |
| 6 5/8 | 12 | 24 1/2 | 14 5/8 | 371.5 | 8 3/8 |
| 7 | 14 | 24 1/2 | 15 | 381 | 8 3/8 |
| 7 5/8 | 14 | 24 1/2 | 15 3/8 | 396.9 | 9 1/2 |
| 8 5/8 | 16 | 24 1/2 | 16 5/8 | 422.3 | 10 5/8 |
| 9 5/8 | 18 | 24 1/2 | 17 5/8 | 447.7 | 11 5/8 |
| 10 3/4 | 18 | 24 1/2 | 18 3/4 | 476.3 | 12 3/4 |
| 11 3/4 | 20 | 24 1/2 | 19 3/4 | 501.7 | 13 3/4 |
| 11 3/8 | 24 | 24 1/2 | 21 3/8 | 542.9 | 15 1/2 |
| 16 | 28 | 24 1/2 | 24 | 609.6 | 18 |
| 18 5/8 | 34 | 24 1/2 | 26 5/8 | 676.3 | 20 5/8 |
| 20 | 34 | 24 1/2 | 28 | 711.2 | 22 |
