Artificial lift Oil Production Sucker Rod Pump Petroleum Equipment

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

Artificial lift Oil Field Sucker Rod

,

Sucker Rod Petroleum Machine

,

Petroleum Oil Well Rod Pump

Equipment:
Petroleum
Application:
Artificial Lift Oil Production
Heavy Wall Model:
RHAC RHBM RHAM
Thin Wall Model:
RWAM RWAC RWBM
Barrel Coating:
Chrome Plated Or Nickel Carbide
Plunger Coating:
Spray Metal
Equipment:
Petroleum
Application:
Artificial Lift Oil Production
Heavy Wall Model:
RHAC RHBM RHAM
Thin Wall Model:
RWAM RWAC RWBM
Barrel Coating:
Chrome Plated Or Nickel Carbide
Plunger Coating:
Spray Metal
Artificial lift Oil Production Sucker Rod Pump Petroleum Equipment

Petroleum Equipment Sucker Rod Pump For Oil Production



Petroleum Equipment Sucker Rod Pump description:



1. When checking the pump,do not need pull tubing;
2. Compared with the other standard pump, the pump is not easy to fracture and bending deformation;
3. Adapt to deep well pump.

Product Model; RHAC, RWAC, RHAM, RWAM, RHBC, RWBC, RHBM, RWBM;
Pump Barrel Material: AISI1045 steel;
Pump Barrel Material: Chrome plated;
Plunger Material: AISI1045 steel;
Plunger Spray Welding Material; Nickel base alloy;
Valve Seat Material; 2cr13;
Column Plug Valve Cover Material: AISI 1045 steel;
The Pump Barrel and Plunger Clearance; 0.001" -0.005" ;
Type and Size of Connection Threads of Sucker Rod Pump and Tubing; 2-3/8 EUE/NUE, 2-7/8 EUE/NUE, 3-1/2 EUE/NUE.
Type and Size of Connection Threads of Sucker Rod Pump and Sucker Rod; 3/4. Meet API 11AX, customizing according to customer's requirements.



RHAC pump technical parameters table:



RHAC model Pump OD (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in) Sucker rod size
20-125RHAC Ø31.75 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”

CYJ16

CYJ19

25-150RHAC Ø38.10 2-7/8”
25-175RHAC Ø44.45 2-7/8”
30-225RHAC Ø57.15 3-1/2”



Feature:

1.extra small clearance between the plunger and the inside wall of the barrel.

2.The top anchored pump with stationary barrel is suitable for sandy wells.
3.The bottom anchored pump with stationary barrel is suitable for deep wells.

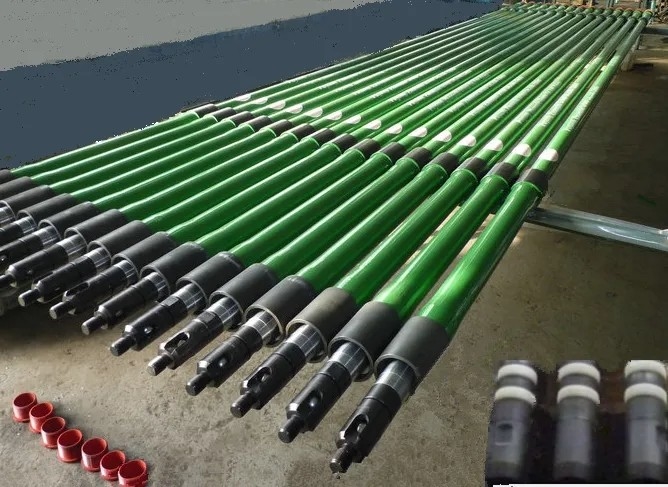

Pump packing photo:



Artificial lift Oil Production Sucker Rod Pump Petroleum Equipment 0
