4 1/2 Inch ~36 Inch Rubber Casing Centralizer With Spiral Vane

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~36"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price
High Light:

36 Inch Rubber Casing Centralizer

,

4 1/2 Inch Rubber Casing Centralizer

,

Spiral Vane Rubber Casing Centralizer

Product:
Rubber Casing Centralizer With Spiral Vane
Material:
Rubber
Size:
4 1/2"~36"
Feature:
High-temperature Resistance
Blade:
Sprial Vane
Manufacture:
Hot-melt
Product:
Rubber Casing Centralizer With Spiral Vane
Material:
Rubber
Size:
4 1/2"~36"
Feature:
High-temperature Resistance
Blade:
Sprial Vane
Manufacture:
Hot-melt

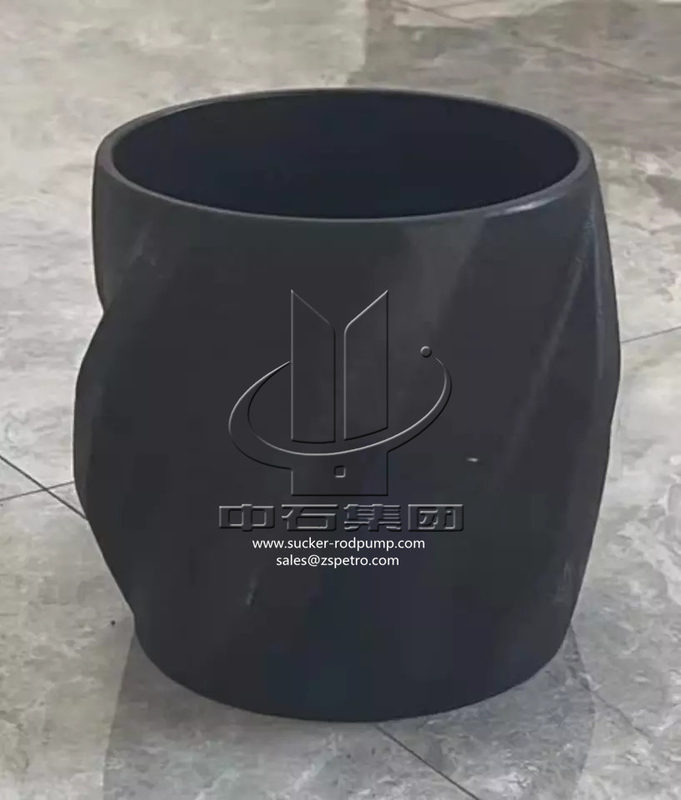

4 1/2 Inch ~36 Inch Rubber Casing Centralizer With Spiral Vane

Rubber Casing Centralizer With Spiral Vane



Made of advanced composite material, the one-piece centralizer has a low coefficient of friction, this centralizer withstands high-impact loading and is highly wear resistant.



Rubber Casing Centralizer With Spiral Vane Features

  • Making the casing smoothly down to the design position with low resistance;
  • Vertical, deviated, and horizontal wells.
  • Extended-reach wells and wells with high dogleg severity.
  • Wells with temperatures up to 175°C.

Rubber Casing Centralizer With Spiral Vane Specification

Specification Style Max OD (mm) ID (mm) Length (mm)
4 1/2 x 6 I, II, III 145 116.5 200
5 x 6 I, II, III 145 129 200
5 1/2 x 8 1/2 I, II, III 205-210 142 200/300
6 5/8 x 8 1/2 I, II, III 205/210 171 200/300
7 x 8 1/2 I, II, III 205/210 181 200/300
7 x 9 1/2 I, II, III 225-235 181 200/300
7 x 9 5/8 I, II, III 225-235 181 200/300
9 5/8 x 12 1/4 I, II, III 300-305 248 200
13 3/8 x 17 1/2 I, II, III 430-435 346 200
