Downhole well casing centralizers With Hollow Vane

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~36"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price
High Light:

Downhole Well Casing Centralizers

,

Hollow Vane Well Casing Centralizers

,

Downhole well centralizer

Product:
Downhole Caing Centralizer With Hollow Vane
Installation:
Slip-on Type
Type:
Hollow Vane
Vane Type:
Spiral
Service:
OEM
Application:
Well Cementing
Product:
Downhole Caing Centralizer With Hollow Vane
Installation:
Slip-on Type
Type:
Hollow Vane
Vane Type:
Spiral
Service:
OEM
Application:
Well Cementing

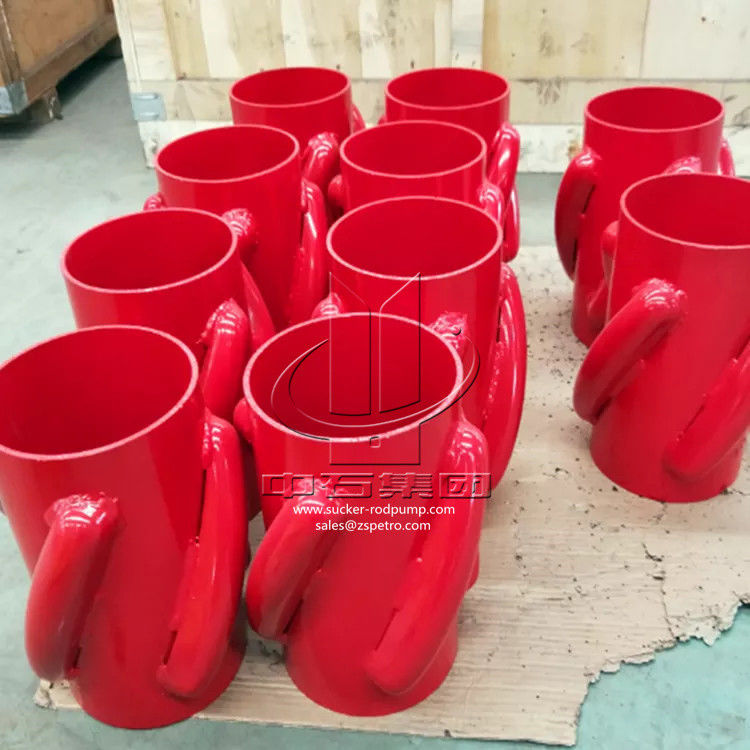

Downhole well casing centralizers With Hollow Vane

Downhole Caing Centralizer with Hollow Vane



Downhole Caing Centralizer with Hollow Vane is designed to provide a positive stand off the casing(we also call it slip on stand off band.

Available in straight or spiral blades, these blades are mechanically formed rather than welded onto the centralizer body.


Downhole Caing Centralizer with Hollow Vane Features
  • For lower torque and drag forces, and undergo a special coating to prevent from rust.

  • Optimize mud displacement in vertical,inclined,and horizontal wells.

  • Reduce minimum friction when running a casing duo to the smooth profile.

  • Save operation time and cost.

  • Different sizes are available



Downhole Caing Centralizer with Hollow Vane Specification

NO. Size (in)ID(mm)Height OD
(mm) (mm)
15-1/2”*7”142-148130174
25-1/2”*8-1/2”142-148130210
36”*8-1/2”156-158130210
47”*8-1/2”181-186130210
57”*9-5/8”181-186200240
67-5/8”*9-5/8”197-201200240
79-5/8”*12-1/4”250-255250311
813-3/8”*17-1/2”342-347250440
