Home > products > Bow Spring Centralizer > Well Cementing Casing Rigid Centralizer 4 1/2"~36"

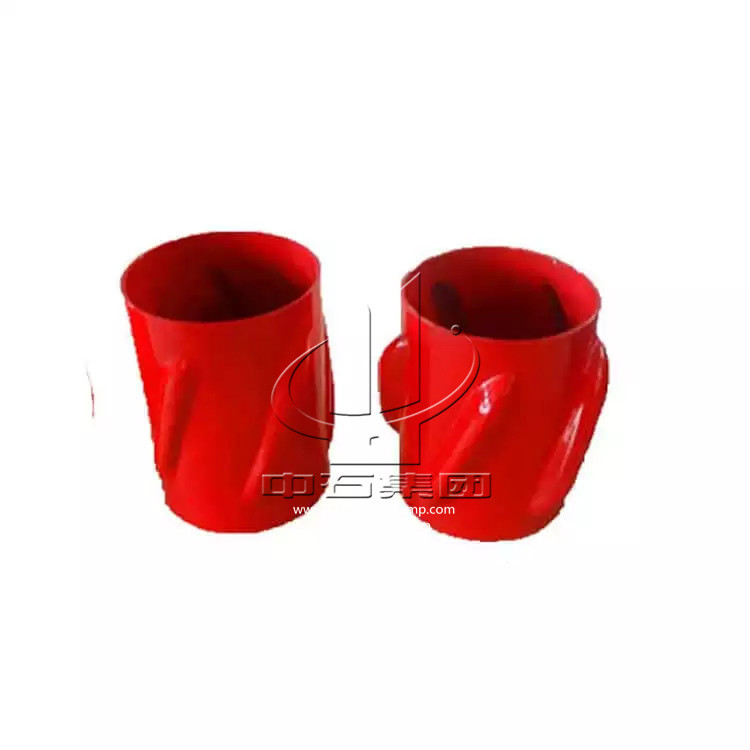

Well Cementing Casing Rigid Centralizer 4 1/2"~36"

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~36"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price
High Light:

Well Cementing Rigid Centralizer

,

36" Rigid Centralizer

,

4 1/2" Rigid Centralizer

Product:
Well Cementing Of Rigid Casing Centralizer
Type:
Slipone
Color:
Red
Vane Type:
Spiral
Service:
OEM
Application:
Oil&gas
Product:
Well Cementing Of Rigid Casing Centralizer
Type:
Slipone
Color:
Red
Vane Type:
Spiral
Service:
OEM
Application:
Oil&gas
Well Cementing Casing Rigid Centralizer 4 1/2"~36"

Well Cementing of Rigid Casing Centralizer



It enables casing strings to reach total depth efficiently while providing good standoff for optimal mud displacement and greatly enhancing cementing operations.


Well Cementing of Rigid Casing Centralizer Features
  • Developed specially for horizontal and extended reach wells.

  • With Up to 50% lower coefficient of friction.

  • Available in straight or spiral blades.

  • The set screws can be integral with solid rigid centralizer body and then help save operation time and cost.

Well Cementing of Rigid Casing Centralizer​ Specification

Specification casing size (mm) Hole Size (mm) Inner Diameter (mm) Outer Diameter (mm)
4-1/2"×6" 114 152 118 146
5-1/2"×8-1/2" 140 216 142 210
7″×8-1/2″ 178 216 182 210
9-5/8″×12-1/4″ 244 311 249 305
