Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
WNon-Welded Hinged Bow Spring Centralizer For Cementing Well |
Installation: |
Hinged |
Color: |
Red Or As Required |
Material: |
65Mn |
Vane: |
Single Crest |
Application: |
Oilfield Cementing Equipment |
Product: |
WNon-Welded Hinged Bow Spring Centralizer For Cementing Well |
Installation: |
Hinged |
Color: |
Red Or As Required |
Material: |
65Mn |
Vane: |
Single Crest |
Application: |
Oilfield Cementing Equipment |

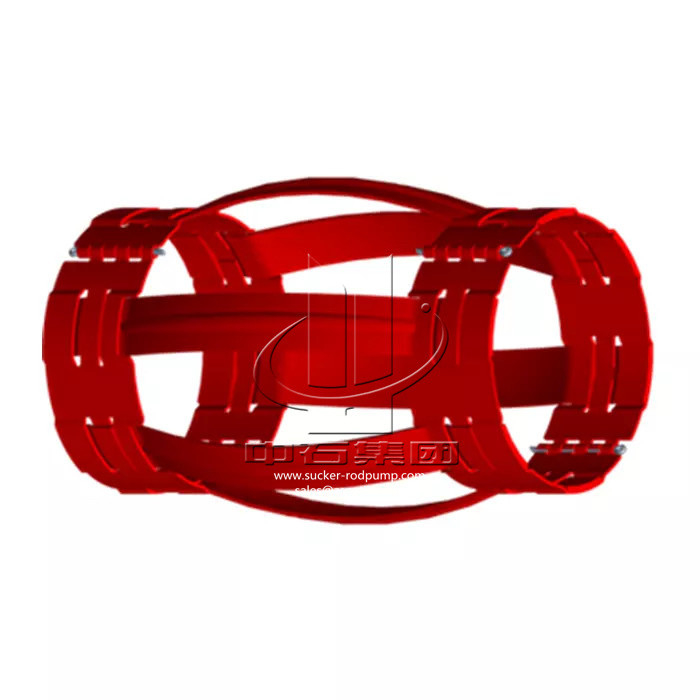

Non-Welded Hinged Bow Spring Centralizer for Cementing Well
This results in a highly uniform thickness between the casing and the wellbore. These centralizers are able to minimise gas channeling by reducing the movement of the pipe before the cement sets in. Additionally, these bow spring centralizers provide a semi-rigid casing standoff.
| Height | Size (in) | ID(mm) | OD |
| (mm) | (mm) | ||
| 250 | 13-3/8”*17-1/2” | 342-347 | 440 |
| 250 | 9-5/8”*12-1/4” | 250-255 | 311 |
| 130 | 7”*8-1/2” | 181-186 | 210 |
| 200 | 7”*9-5/8” | 181-186 | 240 |
| 200 | 7-5/8”*9-5/8” | 197-201 | 240 |
| 130 | 6”*8-1/2” | 156-158 | 210 |
| 130 | 5-1/2”*7” | 142-148 | 174 |
| 130 | 5-1/2”*8-1/2” | 142-148 | 210 |
