Product Details
Place of Origin: Puyang city , Henan province ,China
Brand Name: PUYANGZHONGSHI
Certification: API 5CT 1415
Model Number: API or customized
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD80-200$/pcs

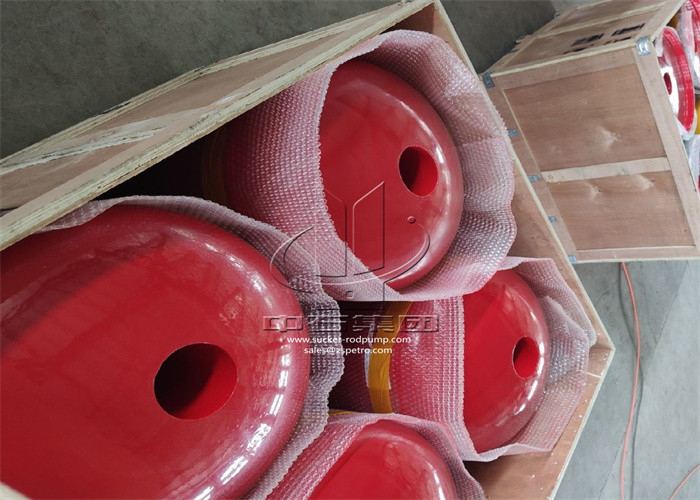

Packaging Details: wooden cases
Delivery Time: 8-15work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs one month
Material: |
Carbon Steel,High Manganese Steel,alloy Steel,Inside Are Aluminum Alloy |
Advantage: |
High Performance,Wear Resistant |
Grade: |
K55,J55,L80 |
Application: |
Oilfield Cementing Tool |
Condition: |
New |
Standard: |
API 5CT |
Warranty: |
1 Year |
Color: |
Red Or Cusromerized |
Material: |
Carbon Steel,High Manganese Steel,alloy Steel,Inside Are Aluminum Alloy |
Advantage: |
High Performance,Wear Resistant |
Grade: |
K55,J55,L80 |
Application: |
Oilfield Cementing Tool |
Condition: |
New |
Standard: |
API 5CT |
Warranty: |
1 Year |
Color: |
Red Or Cusromerized |
API 5CT Cementing Tools Automatic Fill-Up Float Collar & Shoe Drilling Downhole Tool
Float collar and shoe introduction:
Description :
The Float Collar and Float Shoe is used to guide the casing to be puted into the wall hole. It can adjust the floating power of the casing when the casing been laid in. also can certify the qualification of the cementing. The Float Collars and Float Shoes manufactured by our company we use the Spring Driving back-pressure valve type. It has a high reliability.
Parameter of Single Valve Float Collar and Float Shoe:
| Name | Size(in) | Bore O.D.(in) | Bore I.D.(in) | Min Bore | Thread Type | lb(in2) |
| Parameter(in) | ||||||
| Float Collar | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2” LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 | |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 | |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 | |
| Float Shoe | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2" LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 | |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 | |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 |
