API 11AX Tungsten Carbide Spray Metal Pump Plungers With Sand Scraping Ring

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: ZS

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 10000pcs/month

Get Best Price
High Light:

API 11AX Metal Pump Plungers

,

Tungsten Carbide Metal Pump Plungers

,

API 11AX water plunger pump

Product Name:
Tungsten Carbide Pump Plunger
Surface Coating:
Tungsten Carbide Spray Metal
Standard:
API 11AX
Application:
Sucker Rod Pump Parts
Plunger Material:
45# Steel
Parts Code:
P
Product Name:
Tungsten Carbide Pump Plunger
Surface Coating:
Tungsten Carbide Spray Metal
Standard:
API 11AX
Application:
Sucker Rod Pump Parts
Plunger Material:
45# Steel
Parts Code:
P

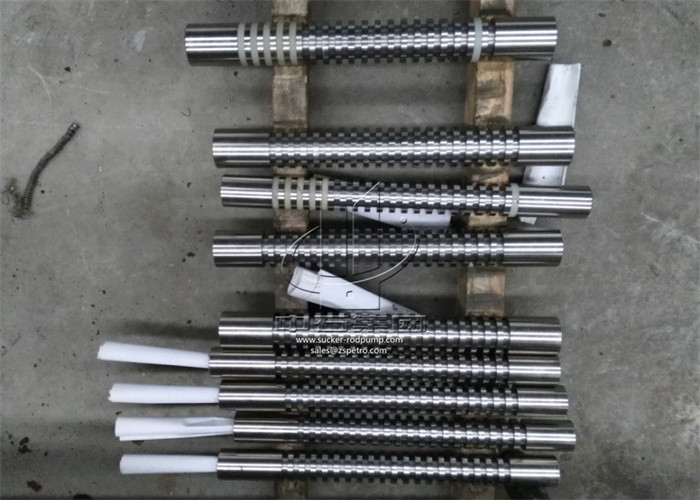

API 11AX Tungsten Carbide Spray Metal Pump Plungers With Sand Scraping Ring

API 11AX Tungsten Carbide Spray Metal Pump Plungers With Sand Scraping Ring

Tungsten Carbide Spray Metal Plunger Description

The Spray Metal Plunger is a key part of sucker rod pump, the spray metal process material include Nickel-based alloy powder also the

tungsten carbide powder,Plunger with sand scraping ring can effectively prevent sand from entering the pump barrel.

Technical Specifications



API code Part No. API No. Marks
P21A P21A-106(XX)-L P21-106 Plunger, Pin End,
One Piece
P21A-125(XX)-L P21-125
P21A-150(XX)-L P21-150
P21A-175(XX)-L P21-175
P21A-200(XX)-L P21-200
P21A-225(XX)-L P21-225
P21A-250(XX)-L P21-250
P21I P21I-106(XX)-L P21-106 Plunger, Pin End,
One Piece, inclined plane
P21I-125(XX)-L P21-125
P21I-150(XX)-L P21-150
P21I-175(XX)-L P21-175
P21I-200(XX)-L P21-200
P21I-225(XX)-L P21-225
P21I-250(XX)-L P21-250
P21I-275(XX)-L P21-275
P21I-325(XX)-L
P21I-375(XX)-L P21-375
P22 P22-125(XX)-L P22-125 Plunger,
Assembled
P22-150(XX)-L P22-150
P22-175(XX)-L P22-175
P22-200(XX)-L P22-200
P22-225(XX)-L P22-225
P22-250(XX)-L P22-250
P22-275(XX)-L P22-275
P23 P23-175(XX)-L P23-175 Plunger,
Box End
P23-225(XX)-L P23-225
P23-275(XX)-L P23-275
P23-375(XX)-L P23-375


Note:



1) L is standard strength for plunger;

2) “XX” is Material identification symbol;

3) The outer surface of the plunger can be processed with annular grooves according to user needs;

4) Two ends are monel connector.

Package Picture:



API 11AX Tungsten Carbide Spray Metal Pump Plungers With Sand Scraping Ring 0T
