Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Material: |
Thermal Plastic |
Color: |
Black Or White |
Size: |
4 1/2"~36" |
Feature: |
High-temperature Resistance |
Blade: |
4~12 |
Manufacture: |
Hot-melt |
Material: |
Thermal Plastic |
Color: |
Black Or White |
Size: |
4 1/2"~36" |
Feature: |
High-temperature Resistance |
Blade: |
4~12 |
Manufacture: |
Hot-melt |

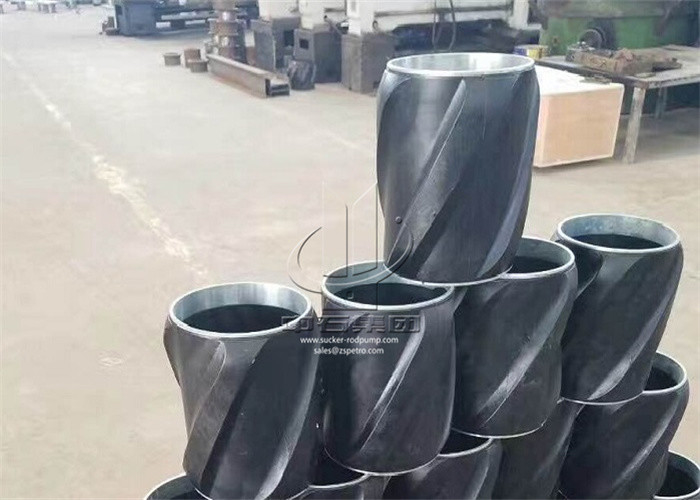

API Bonded Composite Centralisers For 13-5/8 inch Casing To Be Run Inside 14.75 inch Open Hole
Features
Description
The composite centralizer plays the role of centralizing the casing during operation. Made of composite material with low coefficient of friction, heat resistance and high durability. Reliable and functioning even in extreme wellbore conditions, the centralizer can withstand high shock loads and is highly wear resistant.
It has a smooth tapered structure and is available with straight and helical blades. Easily passes through obstacles in the wellbore and is suitable for horizontal applications. Enables the casing string to reach total depth efficiently, provides optimal spacing for mud displacement, and greatly enhances cementing operations.
| Specification | Style | Max OD (mm) | ID (mm) | Length (mm) |
| 4 1/2 x 6 | I, II, III | 145 | 116.5 | 200 |
| 5 x 6 | I, II, III | 145 | 129 | 200 |
| 5 1/2 x 8 1/2 | I, II, III | 205-210 | 142 | 200/300 |
| 6 5/8 x 8 1/2 | I, II, III | 205/210 | 171 | 200/300 |
| 7 x 8 1/2 | I, II, III | 205/210 | 181 | 200/300 |
| 7 x 9 1/2 | I, II, III | 225-235 | 181 | 200/300 |
| 7 x 9 5/8 | I, II, III | 225-235 | 181 | 200/300 |
| 9 5/8 x 12 1/4 | I, II, III | 300-305 | 248 | 200 |
| 13 3/8 x 17 1/2 | I, II, III | 430-435 | 346 | 200 |
