Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Double Plug Casing Cement Head |
Type: |
Doule Plug |
Connection: |
Thread Connection Or Clamp |
Steel Grade: |
J55,L80,N80,P110 |
Working Pressure: |
3000~10000psi |
Application: |
Well Drilling Or Well Cementing |
Product: |
Oilfield Double Plug Casing Cement Head |
Type: |
Doule Plug |
Connection: |
Thread Connection Or Clamp |
Steel Grade: |
J55,L80,N80,P110 |
Working Pressure: |
3000~10000psi |
Application: |
Well Drilling Or Well Cementing |

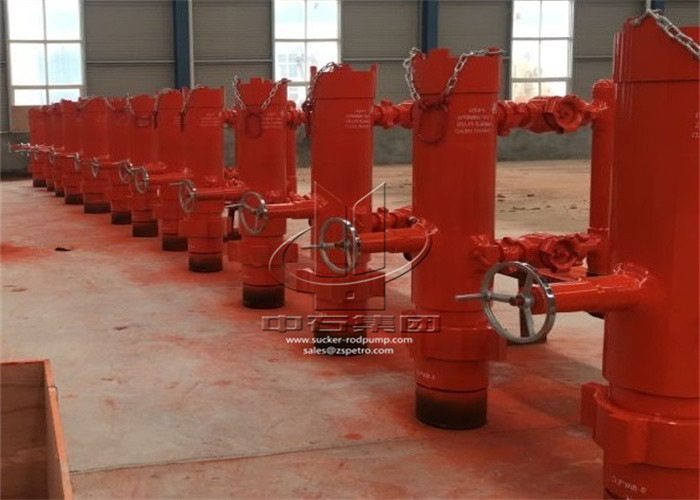

Oilfield Double Plug Casing Cement Head
Casing Cement Heads release the casing plugs, this is used to provide a barrier between the fluids which are pumped into the casing,the cement slurry which via the manifold and plug valves is transferred from pumper truck through the pump line and into the cement head.
Oilfield Double Plug Casing Cement Head Features
| Type | 127 | 177.8 | 244.5 | 339.7 |
| (5″) | (7″) | (95/8″) | (133/8″) | |
| Max rated pressure(MPa) | 35 | 35 | 35 | 21 |
| Connecting Thread | BTC | BTC | BTC | BTC |
| Manifold | 2″1502 Union | 2″1502 Union | 2″1502 Union | 2″1502 Union |
| ID of main body(mm) | 113 | 160 | 225 | 320 |
| Length of top plug container(mm) | 270 | 270 | 290 | 375 |
| Length of bottom plug container(mm) | 270 | 270 | 290 | 375 |
| total length(mm) | 1686 | 1718 | 1993 | 2152 |
