Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Sucker Rod Pump Model: |
RH And RW |
Tubing Pump Model: |
TH |
Barrel Material: |
AISI 1045 Steel In Usual |
Barrel Coating: |
Chrome Plated |
Seating Location: |
Top Or Bottom |
Origin: |
China |
Sucker Rod Pump Model: |
RH And RW |
Tubing Pump Model: |
TH |
Barrel Material: |
AISI 1045 Steel In Usual |
Barrel Coating: |
Chrome Plated |
Seating Location: |
Top Or Bottom |
Origin: |
China |
API 11AX Oil Production Downhole Sucker Rod Pump
Oil Production Downhole Sucker Rod Pump description:
Downhole pump include sucker rod pump and tubing pump
Sucker rod pump is equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple connection on the tubing string, down to the bottom of the well with the tubing string. Plunger assembly connection on the sucker rod string and with the pump overall down to seating nipple position together , pump with fixed inside the seating nipple , Plunger assembly with the sucker rod string up and down reciprocating movement to achieve pumping work.
The pump barrel assembly directly fixed on a tubing string. the plunger assembly connected on the sucker rod string ,and with the up and down reciprocating motion, so as to realize the production process. Its advantage lies in: in the process of oil production, when the traveling valve and fixed valve side problem,valve side can be proposed by the sucker rod, piston and extractor , don’t put the whole pump and tubing string out of the well, reduce the work intensity and the operation cost
TH pump API parameters:
| THC API model | OD of pump (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) |
| 20-175THC | Ø44.45 | 7-34 | 1-26 | 4-29 | 2-8 | 2 3/8" |
| 25-225THC | Ø57.15 | 2 7/8" | ||||
| 30-275THC | Ø69.85 | 3 1/2" | ||||
| 40-375THC | Ø95.25 | 4 1/2" |
Features:
1. High volume and high pressure
2. Precision finish hardened steel or the carbon nitride

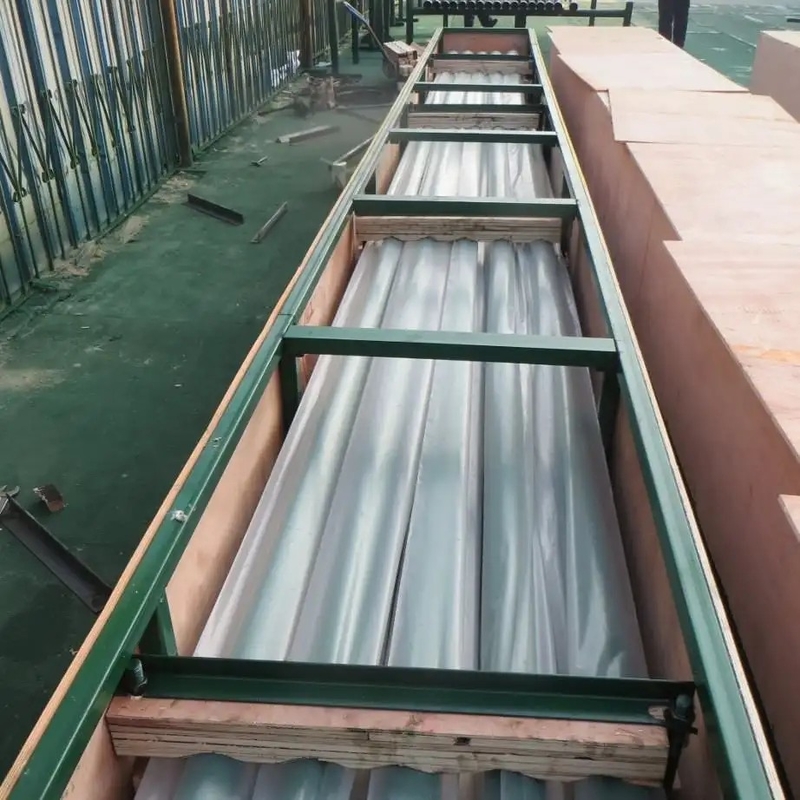

Pump packing frame:
