Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Barrel: |
Heavy Wall |
Pump Type 1: |
Tubing Pump |
Pump Type 2: |
Sucker Rod Pump |
Basic Material: |
High Carbon Steel In Usual |
Small Parts: |
Low Alloy Steel |
Seating Location: |
Top Or Bottom |
Barrel: |
Heavy Wall |
Pump Type 1: |
Tubing Pump |
Pump Type 2: |
Sucker Rod Pump |
Basic Material: |
High Carbon Steel In Usual |
Small Parts: |
Low Alloy Steel |
Seating Location: |
Top Or Bottom |
Heavy Duty Barrel Insert Guided Downhole Pumps:
Heavy duty barrel insert guided downhole pump description:
The rod pump is in a state of "free hanging",so it is suitable for deviated wells. According to seating mode ,the rod pump can be divided into two types:cup hold-down and mechanical hold-down. According to anchored position, the pump can be divided into top hold-down pumps and bottom hold-down pumps which include stationary barrel and traveling barrel types.
Sucker rod pump has RHAC, RHBM, RHBC, RWAM, RWAC, RWBM.
Rod pump should be installed inside the tubing with the sucker rod. It is not necessary to pull the tubing out of the well when checking the pump, which can make the operation easier and quicker
RW model pump technical table:
| RW Series model | Pump OD (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) |
| 30-250RWAM | Ø63.5 | 2.1-10 | 0.3-8.0 | 1.2-9.0 | / | 3-1/2” |
| 30-250RWBM | ||||||
| 30-250RWAC | Ø63.5 | 3-1/2" | ||||
| 30-250RWBC |
Features
1. Mechanical seating, cup seating
2. Suitable for high temperature deep oil wells.
3. Full API size

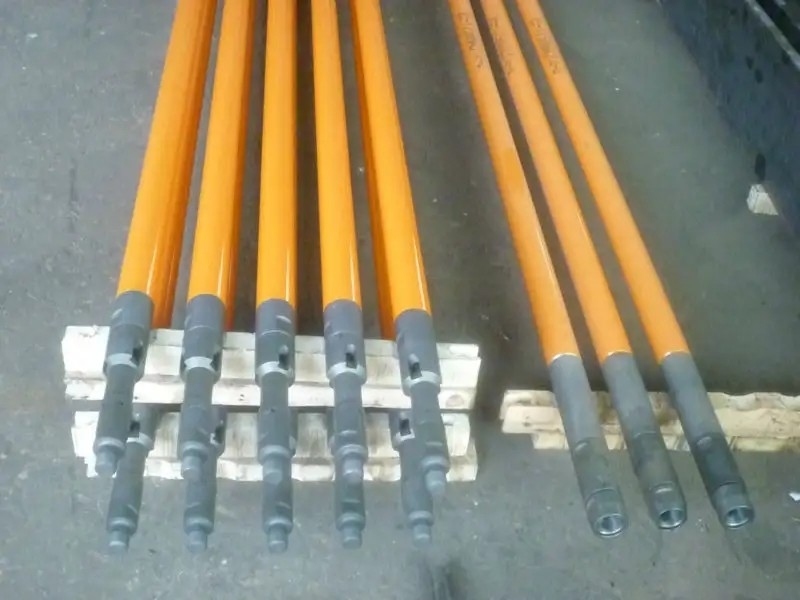

Delivery photo:
