Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Pump Name: |
Downhole Pump |
Barrel Type: |
Thin Wall |
Barrel Coating: |
Chrome Plated Or Nickel Carbide |
Seating Type 1: |
Cup Seating |
Seating Type 2: |
Mechanical Seating |
API Model: |
RWAM RWAC RWBM |
Pump Name: |
Downhole Pump |
Barrel Type: |
Thin Wall |
Barrel Coating: |
Chrome Plated Or Nickel Carbide |
Seating Type 1: |
Cup Seating |
Seating Type 2: |
Mechanical Seating |
API Model: |
RWAM RWAC RWBM |
RWAM RWAC RWBM Thin Walled Barrel Downhole Pumps
Thin walled barrel downhole pump description:
The inner surface of the pump barrel is processed with carbonization quench and chrome plating technology and the plunger surface is processed with thermal metal spraying technology. The pump meets the requirement of long stroke. high speed and deep producing and has the advantages of high pumping efficiency. large displacement ,wear and corrosion resistance,long operation and easy repairing.
Sucker rod pump is equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple connection on the tubing string, down to the bottom of the well with the tubing string. Plunger assembly connection on the sucker rod string and with the pump overall down to seating nipple position together , pump with fixed inside the seating nipple , Plunger assembly with the sucker rod string up and down reciprocating movement to achieve pumping work.
RW API technical parameter table:
| RW Model | Pump OD (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) |
| 30-250RWAM | Ø63.5 | 2.1-10 | 0.3-8.0 | 1.2-9.0 | / | 3-1/2” |
| 30-250RWBM | ||||||
| 30-250RWAC | Ø63.5 | 3-1/2" | ||||
| 30-250RWBC |
Thin walled downhole pumps:
API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump
API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump
API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump

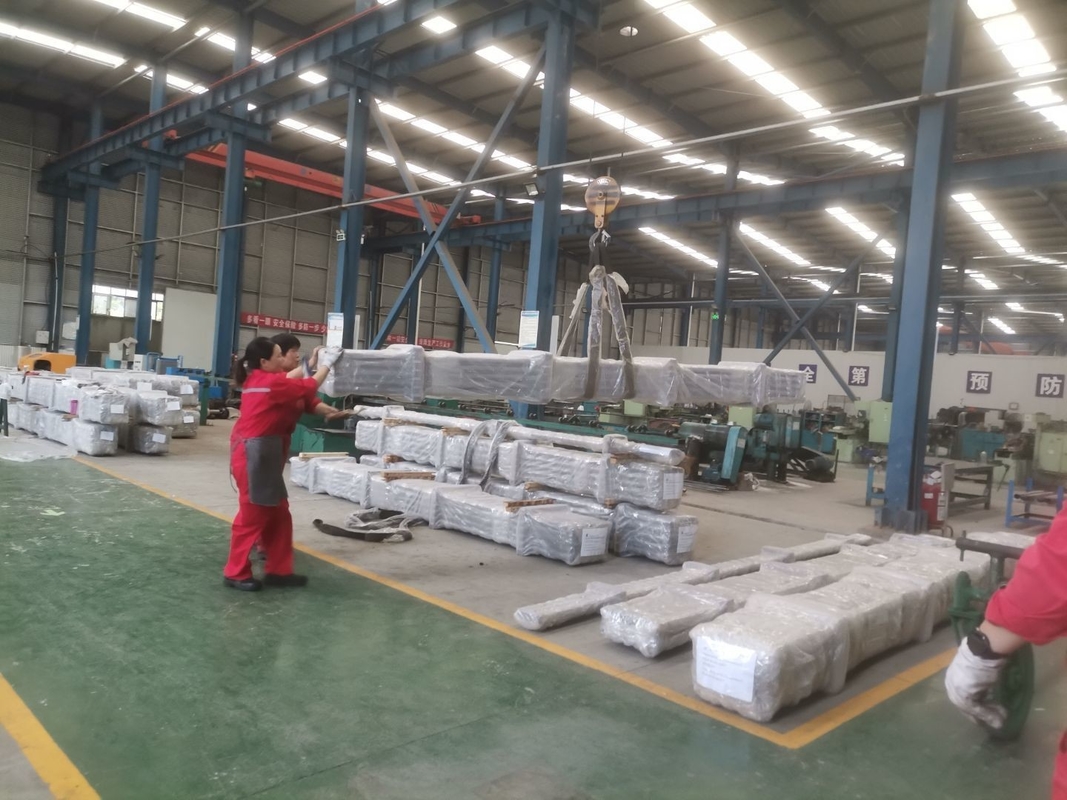

Downhole pump loading for delivery photo:
