RHAC Cup Seating Downhole Pumps With Heavy Wall Barrel

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

RHAC Down Hole Well Pump

,

Stationary Cup Seating Downhole Pumps

,

Chrome Plating Downhole Rod Pump

Pump Model:
RHAC
Seating Type:
Cup Seating
Barrel Type:
Heavy Wall
Barrel Structure:
Stationary
Barrel Coating:
Chrome Plating
Origin:
China
Pump Model:
RHAC
Seating Type:
Cup Seating
Barrel Type:
Heavy Wall
Barrel Structure:
Stationary
Barrel Coating:
Chrome Plating
Origin:
China
RHAC Cup Seating Downhole Pumps With Heavy Wall Barrel

Cup Seating RHAC Downhole Pump With Heavy Wall Barrel



Heavy wall barrel cup seating RHAC downhole pump description:



Downhole rod pump is also known as insert rod pump, it is one type of the conventional sucker rod pumps. The downhole rod pump is connected to the sucker rod directly, downhole pump can be pulled out with sucker rod and does not influence the tubing, so the well inspection and workover is more convenient. It can save a half times and reduce cost of the pumping test, thus the rod pump is suitable for the deeper well.



Downhole pump has a wide range of plunger (or pump-bore) sizes standardized by the industry. The API pump-bore sizes that are currently available range from 1 1/16 to 3 3/4 in. in diameter. This 1 1/16-in. size has been added back in the latest edition of the standard. Additionally, a new barrel type has been accepted in the latest API Spec. 11AX. This is the "X-type" barrel. It has a thin-walled barrel configuration for threads on either end of the heavy-walled barrel and is available for metal plungers only. This type of pump does not require the extension couplings normally needed for heavy-walled barrel pumps. Thus, this pump reduces the burst or collapse concerns of the thin-walled extension couplings and allows deeper producing depths to be attained.

Downhole pump bore sizes range from 1” to 4 ¾” diameter with mechanical, cup type (chevrons) or friction type hold downs available in a variety of materials to suit specific well conditions.



Downhole tubing pump API parameters table:



Tubing pump Model Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-175THM Ø44.45 7-34 1-26 4-29 2-8 2 3/8"
25-225THM Ø57.15 2 7/8"
30-275THM Ø69.85 3 1/2"
40-375THM Ø95.25 4 1/2"



Features:



To achieve maximum performance,API subsurface pumps are machined with extra small clearance between the plunger and the inside wall of the barrel.

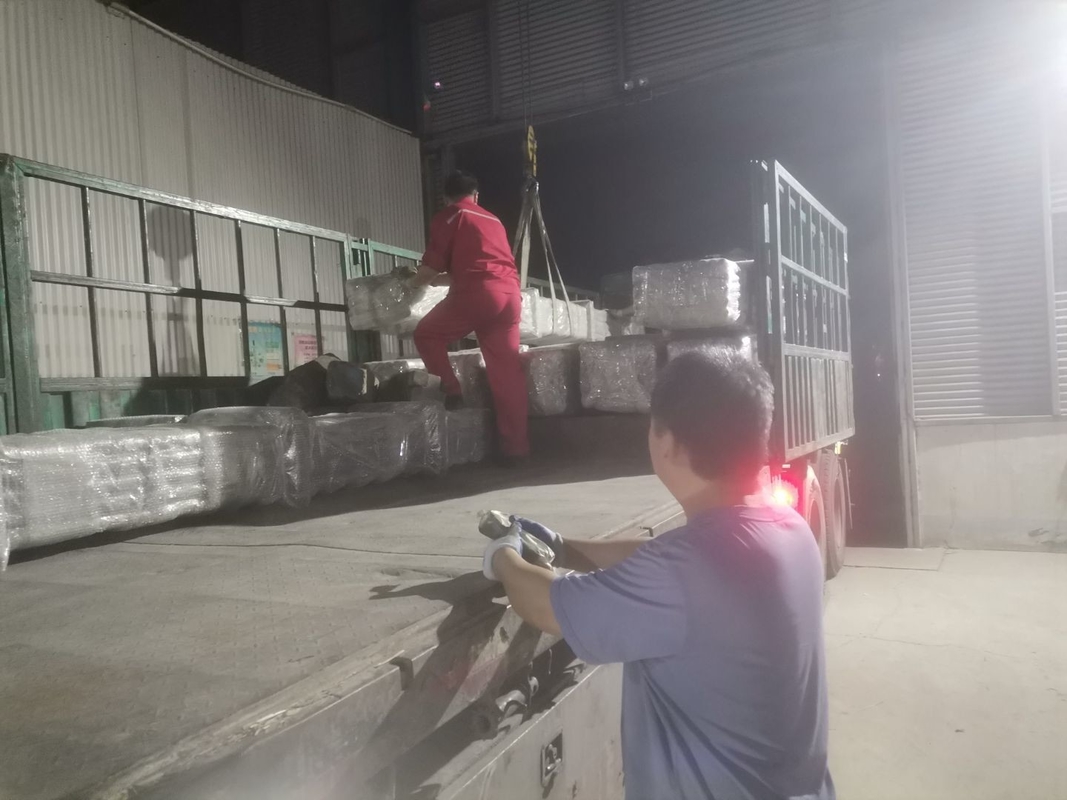

Downhole pump loading photo:

RHAC Cup Seating Downhole Pumps With Heavy Wall Barrel 0
