Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Conventional Cementing Rubber Plugs |
Processing Type: |
Forging, Casting |
Type: |
Conventional |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |
Core Inside: |
Aluminum/Phenolic Core Inside |
Product: |
Oilfield Conventional Cementing Rubber Plugs |
Processing Type: |
Forging, Casting |
Type: |
Conventional |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |
Core Inside: |
Aluminum/Phenolic Core Inside |

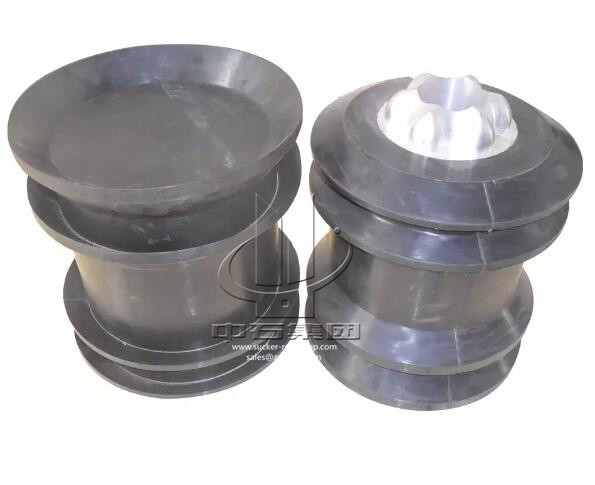

Oilfield Conventional Cementing Rubber Plugs
When the drill bit drilling the cementing rubber plug, the rubber plug will no longer rotate together with the drill bit, thus greatly improving its crushing efficiency and eliminating the hidden danger of oil well.
Inch size | Bore Dia (mm) |
Main body diameter(mm) | MM O.D(mm) | Labial ministry diameter(mm) | Length (mm) |
|||
Rubber | Polyurethane | Rubber | Polyurethane | Rubber | Polyurethane | |||
101 | ≥40 | 77~80 | 72~75 | 101~104 | 96~99 | 94~97 | 89~92 | 100~190 |
114 | 80~83 | 75~78 | 114~116 | 109~111 | 108~110 | 102~105 | ||
127 | ≥50 | 90~93 | 87~90 | 127~130 | 122~125 | 120~123 | 115~118 | 120~210 |
140 | 100~103 | 97~100 | 140~145 | 135~140 | 130~ 135 | 125~130 | ||
178 | ≥70 | 130~135 | 125~130 | 178~183 | 173~175 | 168~173 | 163~168 | 150~240 |
194 | 145~150 | 140~145 | 194~201 | 189~196 | 182~189 | 177~184 | ||
219 | 168~173 | 163~168 | 219~223 | 214~218 | 210~214 | 205~209 | 180~260 | |
244 | 192~197 | 187~192 | 244~249 | 239~243 | 234~239 | 229~234 | ||
273 | 210~214 | 205~209 | 273~279 | 268~273 | 262~268 | 257~263 | 220~300 | |
298 | 236~243 | 231~238 | 298~305 | 293~297 | 286~293 | 281~288 | ||
340 | 264~272 | 259~267 | 340~348 | 335~343 | 326~334 | 321~329 | 260~350 | |
508 | ≥100 | 424~435 | 419~430 | 508~519 | 503~514 | 490~501 | 485~496 | 360~450 |
