Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
API Oilfield Non-Rotating Downhole Wiper Plug |
Processing: |
3500 To 8000 Psi |
Feature: |
PDC Drillable |
Industry: |
Energy & Mining |
Dimension: |
OD250*180 |
Use: |
Oil Drilling Rigs, Well Drilling |
Product: |
API Oilfield Non-Rotating Downhole Wiper Plug |
Processing: |
3500 To 8000 Psi |
Feature: |
PDC Drillable |
Industry: |
Energy & Mining |
Dimension: |
OD250*180 |
Use: |
Oil Drilling Rigs, Well Drilling |

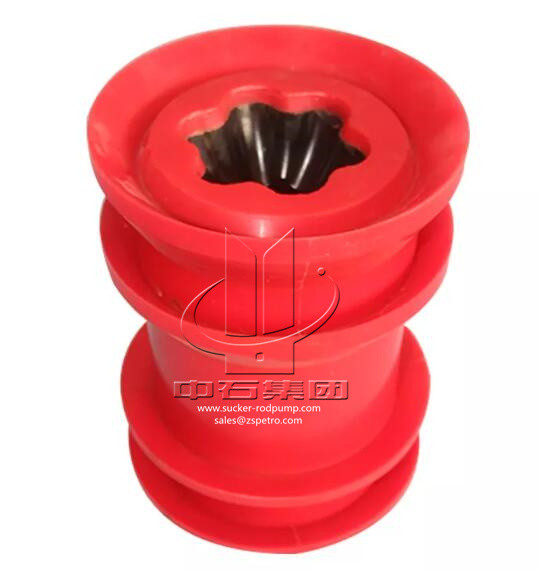

API Oilfield Non-Rotating Downhole Wiper Plug
The core of the bottom plug also made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions.
API Oilfield Non-Rotating Downhole Wiper Plug Features
| Casing Size(in) | Casing Weight Range | Wiper Fin O.D | ||
| mm | in | mm | in | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8" | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10 3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13 3/8" | 71.43-107.15 | 71.43-107.15 | 333 | 13.11 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
