Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Material: |
Thermal Plastic |
Color: |
Black Or White |
Size: |
4 1/2"~36" |
Feature: |
High-temperature Resistance |
Blade: |
4~12 |
Manufacture: |
Hot-melt |
Material: |
Thermal Plastic |
Color: |
Black Or White |
Size: |
4 1/2"~36" |
Feature: |
High-temperature Resistance |
Blade: |
4~12 |
Manufacture: |
Hot-melt |

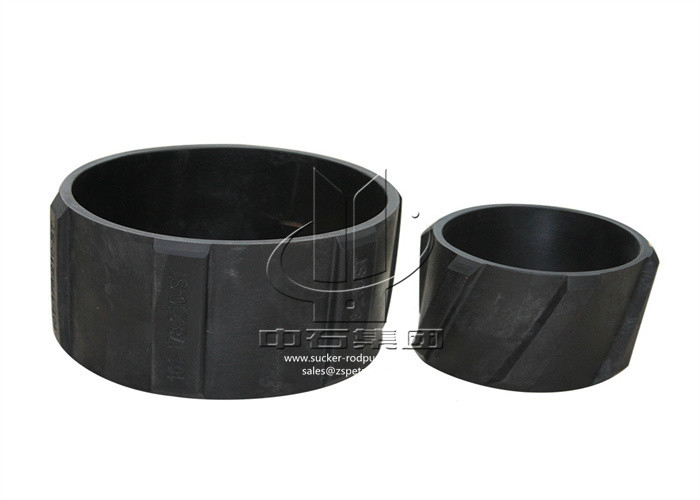

5 1/2” Thermal Plastic Spiral Vane Centralizer With Steel Ring
The nylon centralizer which made of composite material is running during cementing operations to centralize casing. the one-piece centralizer with lowly coefficient friction, this centralizer with stands high-impact loading and is highly wear resistant.
Features
| Specification | Style | Max OD (mm) | ID (mm) | Length (mm) |
| 4 1/2 x 6 | I, II, III | 145 | 116.5 | 200 |
| 5 x 6 | I, II, III | 145 | 129 | 200 |
| 5 1/2 x 8 1/2 | I, II, III | 205-210 | 142 | 200/300 |
| 6 5/8 x 8 1/2 | I, II, III | 205/210 | 171 | 200/300 |
| 7 x 8 1/2 | I, II, III | 205/210 | 181 | 200/300 |
| 7 x 9 1/2 | I, II, III | 225-235 | 181 | 200/300 |
| 7 x 9 5/8 | I, II, III | 225-235 | 181 | 200/300 |
| 9 5/8 x 12 1/4 | I, II, III | 300-305 | 248 | 200 |
| 13 3/8 x 17 1/2 | I, II, III | 430-435 | 346 | 200 |
