Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Application: |
Construction |
Condition: |
New |
Warranty: |
1 Year |
Color: |
Silver |
Material: |
Stainless Steel |
Product Name: |
Cement Float Equipment |
Size: |
Customized |
Application: |
Construction |
Condition: |
New |
Warranty: |
1 Year |
Color: |
Silver |
Material: |
Stainless Steel |
Product Name: |
Cement Float Equipment |
Size: |
Customized |

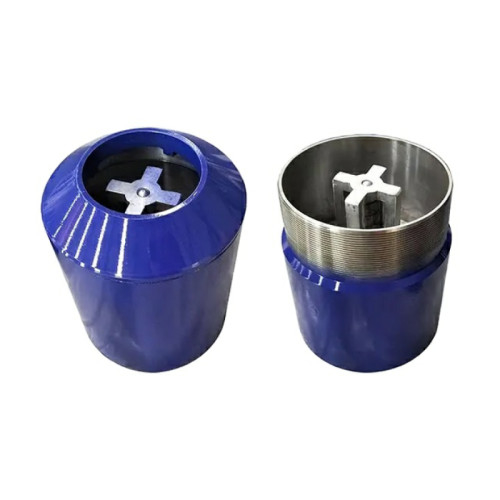

Stab-in Casing Float Collar And Float Shoe API or As required
The stab-in float collar and shoe technique is an improved method used for cementing large diameter casing in drilling operations. This technique involves directly stabbing the drill pipe into either the float shoe or collar, allowing cement to be pumped through the drill pipe until it reaches the surface. To ensure proper cement placement, a wiper dart can be utilized to displace the cement to the bottom of the drill pipe. Once this is done, the drill pipe is lifted, circulated to ensure proper cement distribution, and then extracted from the hole.
It is important to note that when using stab-in float collar and shoe, large plugs are required to separate the cement from the mud. These plugs need to be drilled out along with any cement present in the casing. This technique is specifically designed for cementing large diameter casings that are lowered on drill pipes. Due to the high displacement volume associated with these large casings, special considerations must be taken into account during the cementing process.
|
Specification (in) |
O.D. (mm) |
Total Length |
I.D. (mm) |
Min.Dia. (mm) |
Connection Type | Working Pressure | |
| Float Collar | 5" | 141.3 | 500 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 530 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 586 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 270 | 720 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 365 | 720 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 533.4 | 720 | 475 | 77 | BTC/LTC/BCSG | 35 | |
| Float Shoe |
5" | 140.3 | 495 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 514 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 533 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 269.88 | 550 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 339.7 | 550 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 534 | 652 | 475 | 77 | BTC/LTC/BCSG | 35 | |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
