Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Application: |
Cement Float |
Condition: |
Brand New |
Warranty: |
One Year |
Product Name: |
Float Collar And Float Shoe |
Material: |
Carbon Steel |
Working Pressure: |
21Mpa-35Mpa |
Color: |
Customized |
Product Name: |
Cement Float Equipment |
Size: |
Customized |
Temperature: |
Normal Temperature |
Application: |
Cement Float |
Condition: |
Brand New |
Warranty: |
One Year |
Product Name: |
Float Collar And Float Shoe |
Material: |
Carbon Steel |
Working Pressure: |
21Mpa-35Mpa |
Color: |
Customized |
Product Name: |
Cement Float Equipment |
Size: |
Customized |
Temperature: |
Normal Temperature |

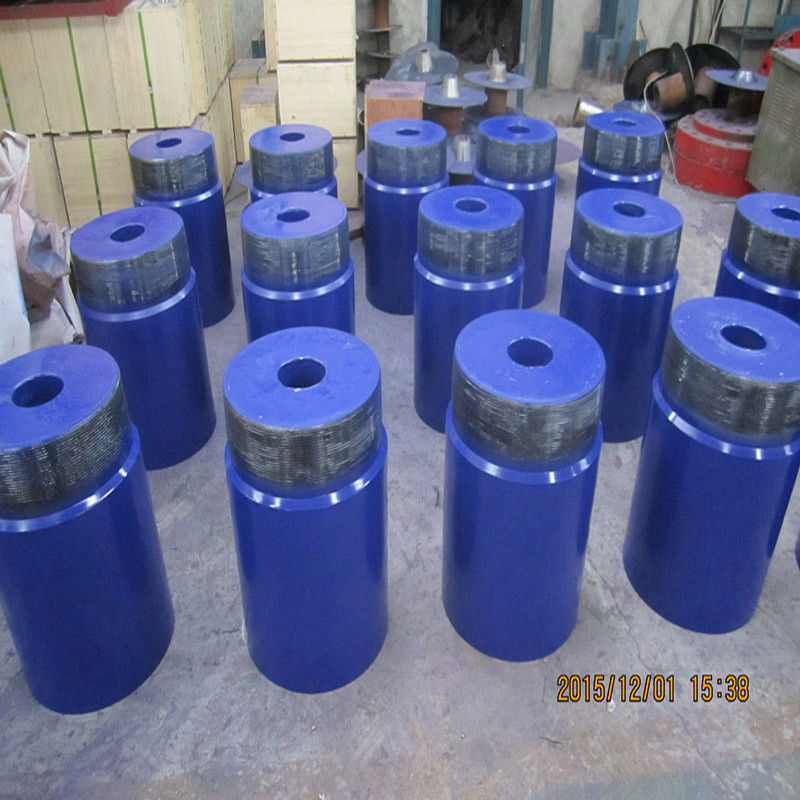

Stab-in Casing Float Collar And Float Shoe API or As required
The Stab-In Float Collar & Shoe technique represents a highly effective approach for cementing large diameter casings. This method involves inserting the drill pipe directly into either the Float Shoe or Collar, and then pumping cement through the drill pipe until returns reach the surface. Afterwards, the cement is displaced to the bottom of the Drill Pipe using a wiper dart before the drill pipe is circulated, retrieved, and removed from the wellbore.
Furthermore, large-sized plugs are indispensable for the cementing process to effectively isolate the cement from the mud and allow for drilled out cement in the casing. The Stab-In Float Collar & Shoe technique is tailored for the cementing of large diameter casings lowered through drill pipe, and requires substantial attention owing to the significant displacement volumes linked to this specific operation.
|
Specification (in) |
O.D. (mm) |
Total Length |
I.D. (mm) |
Min.Dia. (mm) |
Connection Type | Working Pressure | |
| Float Collar | 5" | 141.3 | 500 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 530 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 586 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 270 | 720 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 365 | 720 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 533.4 | 720 | 475 | 77 | BTC/LTC/BCSG | 35 | |
| Float Shoe |
5" | 140.3 | 495 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 514 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 533 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 269.88 | 550 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 339.7 | 550 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 534 | 652 | 475 | 77 | BTC/LTC/BCSG | 35 | |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
Puyang Zhongshi Group Co., Ltd have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
