Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Application: |
Construction |
Condition: |
New |
Warranty: |
1 Year |
Color: |
Silver |
Function: |
Smoothing |
Material: |
Stainless Steel |
Product Name: |
Cement Float Equipment |
Size: |
Customized |
Working Temperature: |
200℃ |
Application: |
Construction |
Condition: |
New |
Warranty: |
1 Year |
Color: |
Silver |
Function: |
Smoothing |
Material: |
Stainless Steel |
Product Name: |
Cement Float Equipment |
Size: |
Customized |
Working Temperature: |
200℃ |

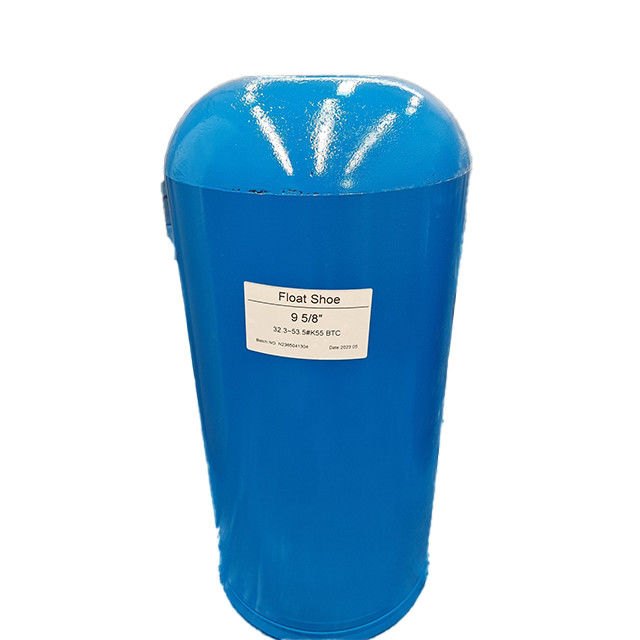

Stab-in Casing Float Collar And Float Shoe API or As required
The Stab-In Float Collar & Shoe technique represents a superior approach for cementing large diameter casings. This method involves the direct insertion of the drill pipe into the Float Shoe or Collar, allowing cement to be pumped through the drill pipe until the returns reach the surface. At this point, the cement is displaced to the bottom of the Drill Pipe via a wiper dart. Later, the drill pipe is efficiently circulated, retrieved, and removed from the wellbore.
In addition, employing a large plug is necessary to separate the cement from the mud during the process, which must be drilled out, along with any cement in the casing. The Stab-In Float Collar & Shoe technique is particularly effective for cementing large diameter casings that are lowered onto the drill pipe. Due to the high displacement volumes associated with larger diameter casings, there are specific cementing considerations that must be taken into account during the process.
|
Specification (in) |
O.D. (mm) |
Total Length |
I.D. (mm) |
Min.Dia. (mm) |
Connection Type | Working Pressure | |
| Float Collar | 5" | 141.3 | 500 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 530 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 586 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 270 | 720 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 365 | 720 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 533.4 | 720 | 475 | 77 | BTC/LTC/BCSG | 35 | |
| Float Shoe |
5" | 140.3 | 495 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 514 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 533 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 269.88 | 550 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 339.7 | 550 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 534 | 652 | 475 | 77 | BTC/LTC/BCSG | 35 | |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
Puyang Zhongshi Group Co., Ltd have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
