Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Application: |
Cement Float |
Condition: |
New |
Warranty: |
1 Year |
Product Name: |
Float Collar And Float Shoe |
Material: |
Steel |
Working Pressure: |
21Mpa-35Mpa |
Color: |
Customized |
Core Components: |
Pressure Vessel |
Dimension(L*W*H): |
500*110*50 |
Control Mode: |
Manual/Automatic |
Flow Rate: |
2-20L/min |
Frequency: |
50HZ/60HZ |
Name: |
Cement Float Equipment |
Power: |
Electric |
Application: |
Cement Float |
Condition: |
New |
Warranty: |
1 Year |
Product Name: |
Float Collar And Float Shoe |
Material: |
Steel |
Working Pressure: |
21Mpa-35Mpa |
Color: |
Customized |
Core Components: |
Pressure Vessel |
Dimension(L*W*H): |
500*110*50 |
Control Mode: |
Manual/Automatic |
Flow Rate: |
2-20L/min |
Frequency: |
50HZ/60HZ |
Name: |
Cement Float Equipment |
Power: |
Electric |

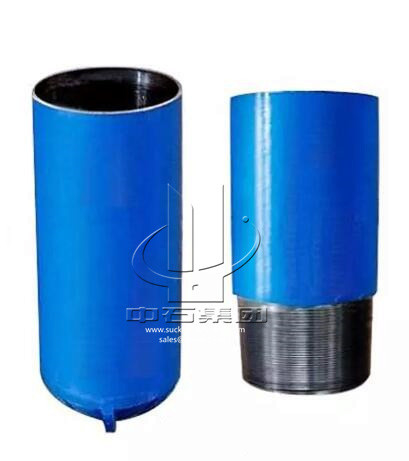

Stab-in Casing Float Collar And Float Shoe API or As required
The Stab-In Float Collar & Shoe approach is a highly effective method for cementing large diameter casings. It entails the direct insertion of the drill pipe into either the Float Shoe or Collar, which provides a pathway for the cement to be pumped through until it reaches the surface. Following this, the cement is displaced to the bottom of the Drill Pipe by using a wiper dart. Finally, the drill pipe is circled, retrieved, and removed from the wellbore.
In addition, one must use large plugs to isolate the cement from the mud and drill out any cement that has accumulated in the casing. It is noteworthy that the Stab-In Float Collar & Shoe approach is specifically tailored towards cementing large diameter casings that are lowered using drill pipe. This technique is crucial when managing high displacement volumes associated with large diameter casings, and requires specialised considerations when conducting cementing operations.
|
Specification (in) |
O.D. (mm) |
Total Length |
I.D. (mm) |
Min.Dia. (mm) |
Connection Type | Working Pressure | |
| Float Collar | 5" | 141.3 | 500 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 530 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 586 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 270 | 720 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 365 | 720 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 533.4 | 720 | 475 | 77 | BTC/LTC/BCSG | 35 | |
| Float Shoe |
5" | 140.3 | 495 | 110 | 50 | BTC/LTC/BCSG | 35 |
| 5 1/2" | 153.67 | 514 | 112 | 55 | BTC/LTC/BCSG | 35 | |
| 7" | 194.46 | 533 | 162.5 | 77 | BTC/LTC/BCSG | 35 | |
| 9 5/8" | 269.88 | 550 | 225 | 77 | BTC/LTC/BCSG | 35 | |
| 13 3/8" | 339.7 | 550 | 319 | 77 | BTC/LTC/BCSG | 35 | |
| 20" | 534 | 652 | 475 | 77 | BTC/LTC/BCSG | 35 | |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
Puyang Zhongshi Group Co., Ltd have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
