Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 2000psi to 20000 pis
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Features: |
X-mas Tree |
Application: |
Oilfield Cementing |
Warranty: |
1.5 Years |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Certificate: |
ISO, API, Etc. |
MOQ: |
1 Piece |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel, Etc. |
Features: |
X-mas Tree |
Application: |
Oilfield Cementing |
Warranty: |
1.5 Years |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Certificate: |
ISO, API, Etc. |
MOQ: |
1 Piece |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel, Etc. |

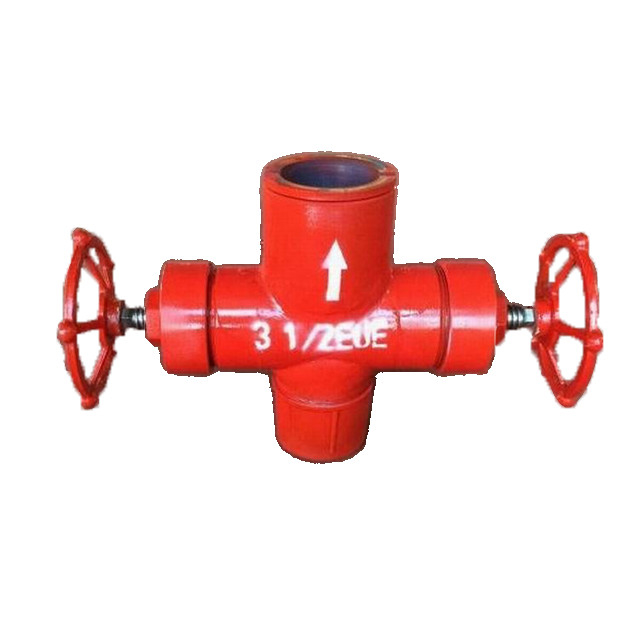

Oil Gas Production Christmas Trees
These devices are utilized to regulate the pressure at the wellhead and manage the rate of flow for oil and gas.
Structural models can be classified as single-wing or dual-wing configurations, as well as single-string or dual-string integrated designs.
The trees have the option to be equipped with either hydraulic or pneumatic safety valves, as well as a control panel for remote control functionality. The choke valve can be either fixed or adjustable.
| Rated operating pressure psi(MPa) | Nominal bore diameterin(mm) | Minimum vertical bore diameterin(mm) | Bypass bore diameter in(mm) | Tubing outer diameter in(mm) |
| 2000(13.8) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 3000(20.7) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 5000(34.5) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 10000(69.0) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 15000(103.5) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
| 20000(138.0) | 2 9/16"~7 1/16" (65~180) | 6 1/4"~10" (159~254) | 1 13/16"~4 1/16" (46~103) | 1.90"~4 1/2" (48.3~114.3) |
API 6A wear bushing wellhead
1)Product Introduction:
What is API 6A Wellhead Equipment & X-mas Tree Product?
1. The wellhead is a crucial part of oil and gas production.
2. It secures the casing and tubing of the well and regulates pressure and production.
3. The wellhead must be designed to withstand high pressures and extreme conditions.
4. It may be equipped with accessories such as valves, chokes, and sensors, and can be operated manually or remotely for optimal functionality.
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
