Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: IOS,API
Model Number: 13 3/8″ to 4 1/2″
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 10000sets/month
Features: |
API Low Pressure Filter Press |
Application: |
Application |
Core Components: |
PLC, Bearing |
Condition: |
New |
Usage: |
Oilfield Drilling Equipment |
Color: |
Customized |
Bow Spring Finish: |
Polished |
Bow Spring Force: |
1000 Lbs |
Coupling Type: |
Integral |
Material: |
Carbon Steel |
Features: |
API Low Pressure Filter Press |
Application: |
Application |
Core Components: |
PLC, Bearing |
Condition: |
New |
Usage: |
Oilfield Drilling Equipment |
Color: |
Customized |
Bow Spring Finish: |
Polished |
Bow Spring Force: |
1000 Lbs |
Coupling Type: |
Integral |
Material: |
Carbon Steel |

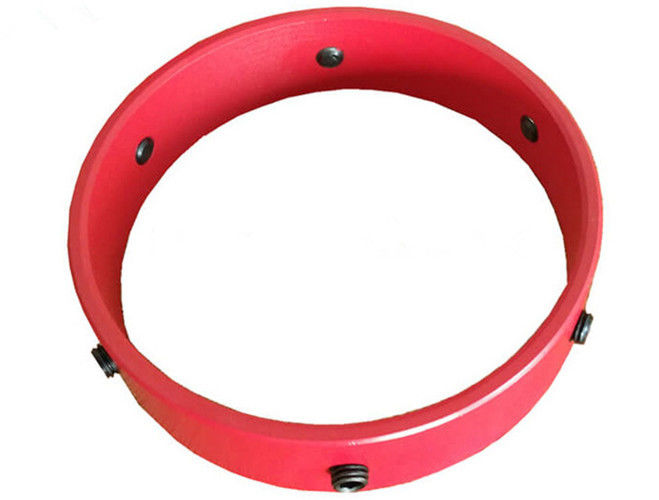

Centralizer Stop Collars
1.Application and characteristic of Centralizer Stop Collars:
A device utilized to restrict the slip of centralizers or cement baskets on a casing, commonly known as a position ring, stop circular, brake ring, etc. This device comes in three types: mobile screw-type, fixed screw-type, and buckle-type. Its main function is to limit the axial movement of the centralizer or cement basket on the casing during the cementing process.
2. Install and use the method of Centralizer Stop Collars:
a. When using the mobile screw-type stop collar, slip it over the casing and use a wrench to tighten the screws.
b. When using the fixed screw stop collar, put the collar around the casing, insert the screw, and use a hammer to tap the screw into place.
c. When installing a buckle-type stop collar, buckle the stop collar onto the casing and lock it with a pin. Then, use a hammer to tap the screws into place.
3. Property Parameters of Centralizer Stop Collars:
| Specifications,mm | 13 3/8″ | 10 3/4″ | 9 5/8″ | 8 1/8″ | 7 5/8″ | 7″ | 5 1/2″ | 5″ | 4 1/2″ |
| ID,mm | 338 | 272 | 245 | 206 | 193 | 177 | 139 | 126 | 114 |
| OD,mm | 350 | 284 | 257 | 218 | 285 | 189 | 151 | 138 | 126 |
| Holding Force,KN | 40 | 40 | 40 | 30 | 30 | 30 | 30 | 24 | 24 |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
