Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API ,ISO ,QHSE
Model Number: sucker rod
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: exported packing
Delivery Time: 2weeks
Payment Terms: T/T
Supply Ability: 1000pcs
Product Name: |
Alloy Steel Sucker Rod |
Grade: |
D,KD,HY,K,HL |
Standard: |
API 11B |
Size: |
3/4",1",5/8"-1-1/8" |
Length: |
25-30ft |
Package: |

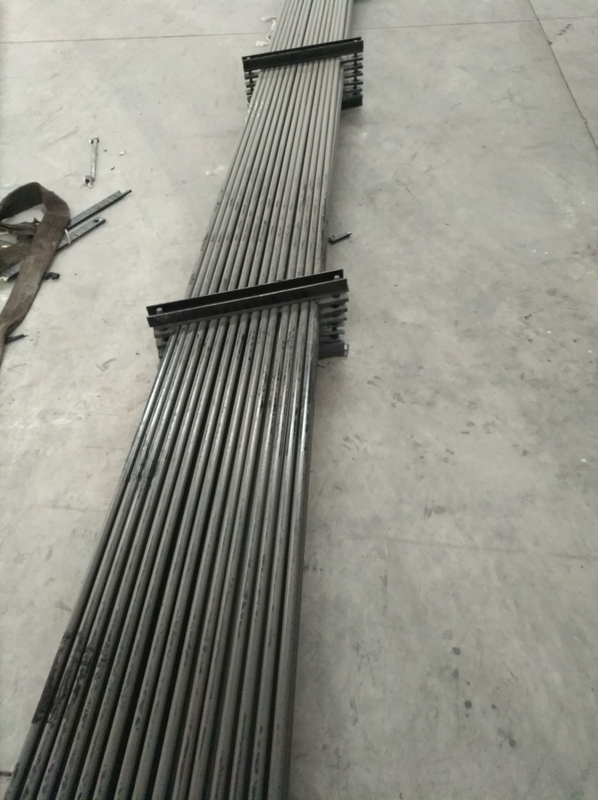

Bundle As Per API 11B Standard |
Product Name: |
Alloy Steel Sucker Rod |
Grade: |
D,KD,HY,K,HL |
Standard: |
API 11B |
Size: |
3/4",1",5/8"-1-1/8" |
Length: |
25-30ft |
Package: |
Bundle As Per API 11B Standard |
API Grade D H 7/8" 1 1/4" Polished Class D Sucker Rod Pony Rod Norris 96 with Couplings
|
Size in (mm) |
Rod Body diameter in (mm) | diameter of ext. thread in (mm) |
Full size Coupling OD mm (in) |
Coupling OD mm (in) |
Wrench square W*L mm (in) | Length series m (ft) |
| 5/8 (16) | 5/8 (15.88) | 15/16 (23.81) | 38.10(1.5) | 31.8 (1.25) | 22.2×31.8 (7/8×1-1/4) | 7.62 (25) |
| 3/4 (19) | 3/4 (19.05) | 1-1/16(26.99) | 41.28(1.625) | 38.1 (1.5) | 25.4×31.8 (1×1-1/4) | 9.14 (30) |
| 7/8 (22) | 7/8 (22.23) | 1-3/16 (30.16) | 46.0(1.812) | 41.3 (1.625) | 25.4×31.8 (1×1-1/4) | 0.6 (2), 1 (3) |
| 1 (25) | 1 (25.40) | 1-3/8 (34.93) | 55.6(2.187) | 50.8 (2) | 33.3×38.1(1-5/16×1-1/2) | 2 (6), 3 (10) |
| 1-1/8 (28) | 1-1/8 (28.58) | 1-9/16 (39.7) | 60.33(2.375) | 57.2 (2.25) | 38.1×41.3 (1-1/2×1-5/8) |
Mechanical Properties of Sucker Rods:
| Grade |
Min Yield strength 0.2% offset M Pa (psi) |
Tensile strength M Pa (psi) |
Elongation δ% |
Reduction of area ψ% |
| K | 414 (60, 000) | 621-793(90, 000-115, 000) | ≥13 | ≥60 |
| C | 414 (60, 000) | 621-793(90, 000-115, 000) | ≥13 | ≥50 |
| D | 586 (84, 970) | 793-965 (114, 985-139, 925) | ≥10 | ≥50 |
| KD | 590(85, 000) | 793-965 (114, 985-139, 925) | ≥10 | ≥50 |
| HL | 795(115,000) | 965-1,195(140,000-173,339) | ≥10 | ≥45 |
| HY | 540 (78, 300) | 965-1,195(140,000-173,339) | ≥42 | ≥224 |
