Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API 11AX
Model Number: 5-1/2"X8-1/2"to20"X26"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Features: |
Thermoset |
Type: |
Bow Type Spring Centralizer |
Product Name: |
Thermoset Centralizers |
Material: |
Stainless Steel |
Central Multimedia: |
Central Machinery Parts |
Central Hydraulics Scissor Lift: |
Toyota Central Locking System |
Weight (KG): |
3 |
Use: |
Well Drilling |
Color: |
Customized |
Features: |
Thermoset |
Type: |
Bow Type Spring Centralizer |
Product Name: |
Thermoset Centralizers |
Material: |
Stainless Steel |
Central Multimedia: |
Central Machinery Parts |
Central Hydraulics Scissor Lift: |
Toyota Central Locking System |
Weight (KG): |
3 |
Use: |
Well Drilling |
Color: |
Customized |
Thermoplastic Centralizer
Designed for extreme wellbore conditions
|
Product name: casing centralizer Composite Centralizer(PA66+GF30) Product classification: Spring centralizer, Rigid centralizer, Composite centralizer with and without roller |
Applications
• Vertical, deviated, and horizontal wells.
• Extended-reach wells and wells with high dogleg severity.
• Wells with temperatures up to 175°C.
Description

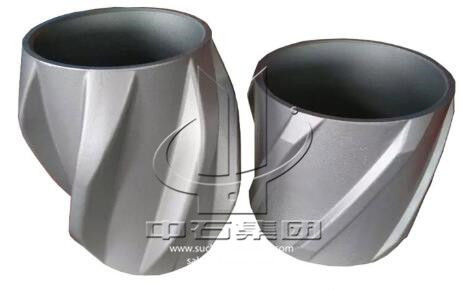

The composite centralizer is used during running and cementing operations to centralize casing. Made of advanced composite, with low coefficient of friction, heat resistant, and highly durable. Performs reliably even in extreme wellbore conditions,this centralizer withstands high-impact loading and is highly wear resistant.
It has a smooth, tapered construction to easily pass obstructions in the wellbore, suited for horizontal applications. Enables casing strings to reach total depth efficiently, provides optimal standoff for mud displacement, and greatly enhances cementing operations. Available in straight and spiralblade configurations.
Description
|
|
Specification:
| Size(inch) | Inner Diameter(mm) | Outer Diameter(mm) | Height(mm) |
| 13-3/8 | 343 | 400 | 130 |
| 10-3/4 | 276 | 308 | 120 |
| 9-5/8 | 247 | 308 | 120 |
| 7-5/8 | 197 | 243 | 120 |
| 7 | 180 | 212 | 120 |
| 5-1/2 | 143 | 213 | 120 |
| 5 | 130 | 151 | 120 |
| 4-1/2 | 117 | 148 | 100 |
| 4 | 104 | 118 |
80 |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
