Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: IOS,API
Model Number: 1/8"-4"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 10000sets/month
Material: |
Carbon Steel |
Color: |
Customized |
Surface Treatment: |
Parkerising |
Core Components: |
Pressure Vessel |
Warranty: |
6 Months |
Production Capacity: |
10000 Sets/year |
Condition: |
New |
Material: |
Carbon Steel |
Color: |
Customized |
Surface Treatment: |
Parkerising |
Core Components: |
Pressure Vessel |
Warranty: |
6 Months |
Production Capacity: |
10000 Sets/year |
Condition: |
New |
Product Specifications:

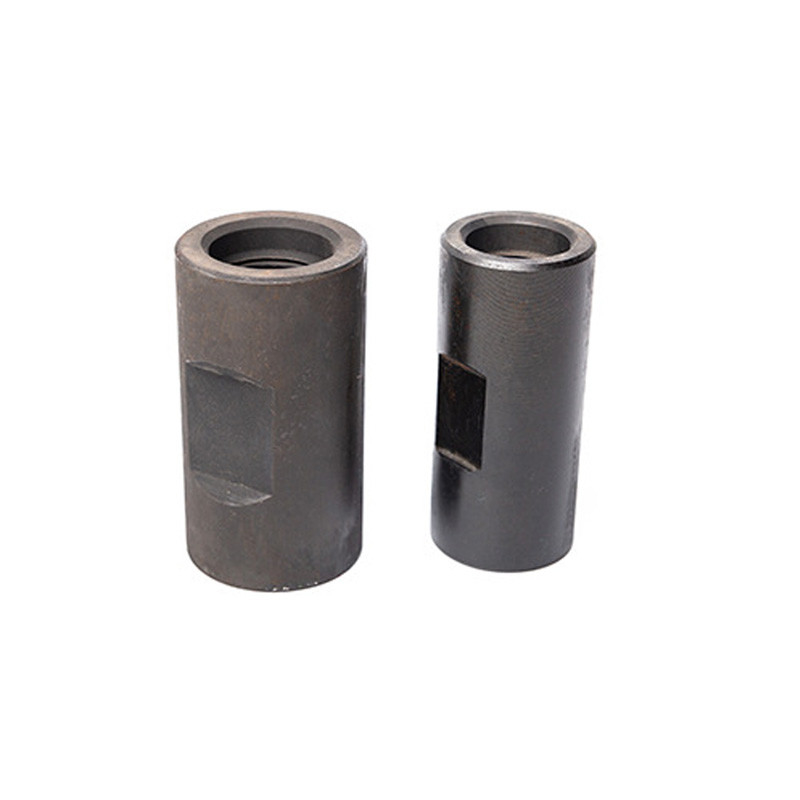

Two different grades of Sucker Rod Couplings are available: T and SM. The manufacturing process of both the grades is the same with cold worked pre-stressed, roll-formed threads with the anti-galling coating. This process results in stronger/fatigue resistant threads.
The manufacturing inspection, the dimensions and the tolerances of the couplings match or exceed the specifications of the latest API standards.
Type | Grade | O.D (mm) | Minimum Lengh (mm) | Hardness | Weight (kg) | Standard |
3/4" | 19-T | 41.05~41.43 | 101.6~103.17 | 56-62HRA | 0.65 | API 11B |
7/8" | 22-T | 45.75~46.13 | 45.75~46.13 | 56-62HRA | 0.8 | API 11B |
1" | 25-T | 55.3.5~55.73 | 55.35~55.73 | 12-23HRA | 1.15 | API 11B |
* They are available in reduced slim hole (SH) diameters as well as normal full size (FS) for both API Class T(through-hardened) and Class SM (Spray Metal).
Puyang Zhongshi Group Company Ltd was founded in 1996,which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 6083 million yuan,with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. Oil machinery is our main products, the leading products include pumping unit,subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels,drilling solid control series products and cementing accessories, We had attained ISO 9001 in 1998 and API Certificates in 2002 .
· Zhongshi Group is the API certification enterprise for 15 years;
· ISO9001 quality management system;
· We provide on-site technical service,no matter when and where.
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
