Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: IOS,API
Model Number: 1/8"-4"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 10000sets/month
Material: |
Carbon Steel |
Color: |
Customized |
Surface Treatment: |
Parkerising |
Core Components: |
Pressure Vessel |
Warranty: |
6 Months |
Production Capacity: |
10000 Sets/year |
Condition: |
New |
Material: |
Carbon Steel |
Color: |
Customized |
Surface Treatment: |
Parkerising |
Core Components: |
Pressure Vessel |
Warranty: |
6 Months |
Production Capacity: |
10000 Sets/year |
Condition: |
New |

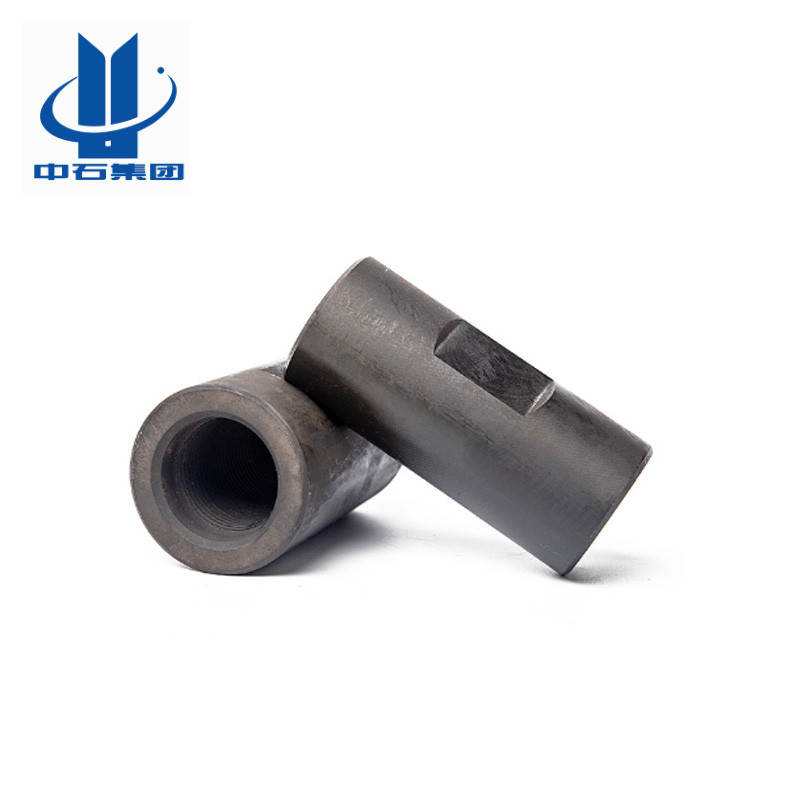

Class T and Class SM coupling for sucker rods are manufactured as per API Specification 11B. For the thread cutting, we are using cold form rolled by displacing rather than by removing of material for making the coupling thread. The thread rolling cutting results in a compressive stress at the root of the thread, giving maximum strength to the traditional weak point of cut-thread couplings.
Class T coupling is using AISI 5140 to manufacture.The coupling is coated using phosphate chemical treatment or black oxide on customer's request.For Class SM coupling, the spray metal is a specification hardening process and is applied on the base metal.
The couplings are available in full size, slim hole and over size.Also, combination couplings are available for different
diameters (sub-coupling) for both Class T and Class SM couplings.
Type | Grade | O.D (mm) | Minimum Lengh (mm) | Hardness | Weight (kg) | Standard |
3/4" | 19-T | 41.05~41.43 | 101.6~103.17 | 56-62HRA | 0.65 | API 11B |
7/8" | 22-T | 45.75~46.13 | 45.75~46.13 | 56-62HRA | 0.8 | API 11B |
1" | 25-T | 55.3.5~55.73 | 55.35~55.73 | 12-23HRA | 1.15 | API 11B |
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
