Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 2000psi to 20000 pis
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Features: |
X-mas Tree |
Application: |
Oilfield, Gasfield, Mining |
Warranty: |
1.5 Years |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Connection: |
Threaded, Flanged, Welded |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
Name: |
Oilfield Cementing Tools |
Surface Treatment: |
Polishing, Galvanizing, Coating |
Temperature: |
High Temperature, Low Temperature |
Features: |
X-mas Tree |
Application: |
Oilfield, Gasfield, Mining |
Warranty: |
1.5 Years |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Connection: |
Threaded, Flanged, Welded |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
Name: |
Oilfield Cementing Tools |
Surface Treatment: |
Polishing, Galvanizing, Coating |
Temperature: |
High Temperature, Low Temperature |

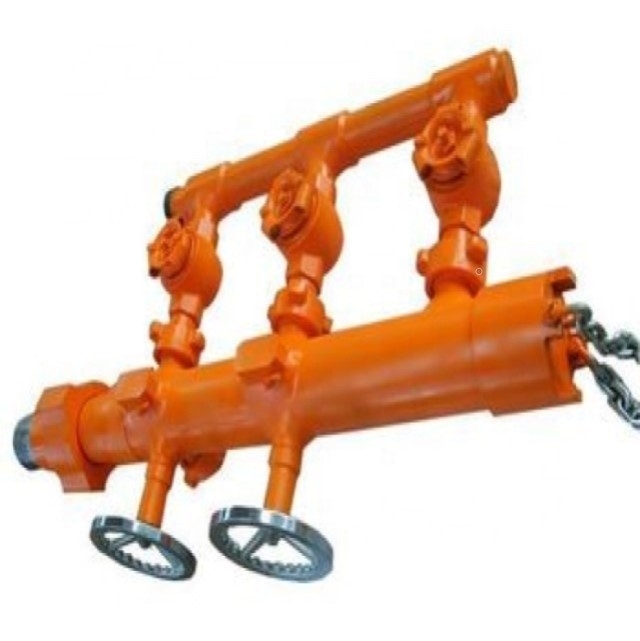

Product features:
1. Levels can accommodate 1 or 2 rubber plug cementing operation, equipped with independent cock valve manifold cycles.2, the full range specifications meet the SY/T7084-2016 standard requirement.3 · products equipped with heavy-duty bearing, built-in maintenance-free lubrication system, have good performance under high temperature and high pressure, mainly used in casing rotation cementing operation.
Technical parameter
| Specifications (in) | 5 1/2” | 6 5/8” | 7” | 7 5/8” | 9 5/8” | 10 3/4” | 13 3/8” |
| Overall Length(mm) | 1460 | 1500 | 1500 | 1550 | 1750 | 1750 | 1780 |
| Manifold | 2” Union | ||||||
| I.D. of Plug Container (mm) | 125 | 150 | 160 | 175 | 225 | 250 | 320 |
| Length of Plug Container (mm) | 400 | 450 | 450 | 450 | 550 | 550 | 600 |
| Working Pressure (Mpa) | 35.50 | 35.50 | 35.50 | 35.50 | 35.50 | 35 |
35 |
FAQ
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
