Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 2000psi to 20000 pis
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Features: |
X-mas Tree |
Application: |
Oilfield, Gasfield, Mining |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Connection: |
Threaded, Flanged, Welded |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
Name: |
Oilfield Cementing Tools |
Surface Treatment: |
Polishing, Galvanizing, Coating |
Features: |
X-mas Tree |
Application: |
Oilfield, Gasfield, Mining |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Connection: |
Threaded, Flanged, Welded |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
Name: |
Oilfield Cementing Tools |
Surface Treatment: |
Polishing, Galvanizing, Coating |

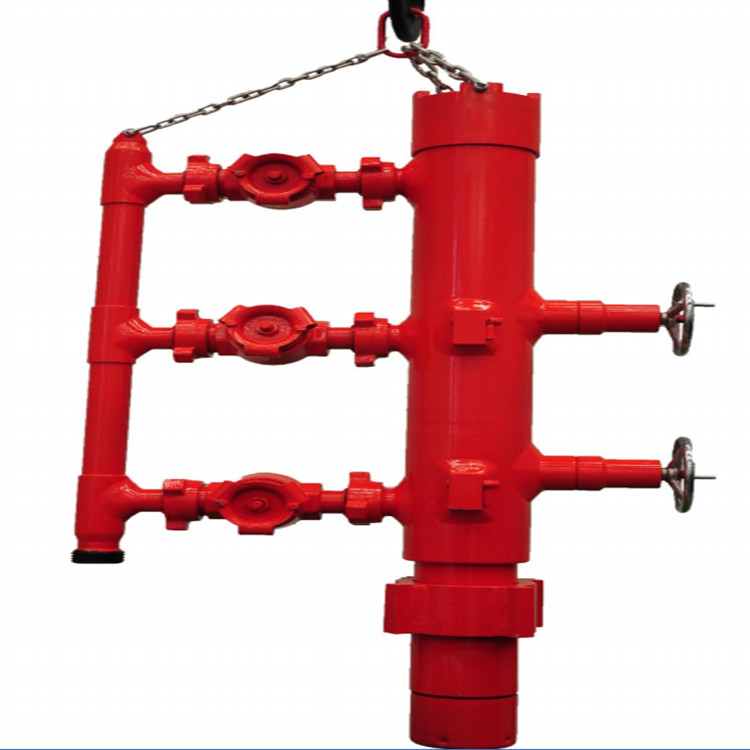

It is used for cementing applications, mostly pumping slurry and releasing plugs. The cement head is connected between the upper end of the casing string and the cementing pipe sink. Cementing heads are fitted to the top joint of the casing string to hold the cement plug before it is pumped down the casing during the cementing operation. Mostly cementing heads can hold both the top and bottom plugs.
Features
a. Quick-latch adapter is designed to offer easier, faster and safer makeup for cementing casing.
b. Able to couple with two plugs simultaneously. Simplify the cementing operation and prevent cement pollution.
c. Positive lever indicates plug releasing.
d. Balance pipe is developed.
Technical parameter
| Specifications (in) | 5 1/2” | 6 5/8” | 7” | 7 5/8” | 9 5/8” | 10 3/4” | 13 3/8” |
| Overall Length(mm) | 1460 | 1500 | 1500 | 1550 | 1750 | 1750 | 1780 |
| Manifold | 2” Union | ||||||
| I.D. of Plug Container (mm) | 125 | 150 | 160 | 175 | 225 | 250 | 320 |
| Length of Plug Container (mm) | 400 | 450 | 450 | 450 | 550 | 550 | 600 |
| Working Pressure (Mpa) | 35.50 | 35.50 | 35.50 | 35.50 | 35.50 | 35 |
35 |
FAQ
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
