Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 2000psi to 20000 pis
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Features: |
X-mas Tree |
Application: |
Oilfield, Gasfield, Mining |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Connection: |
Threaded, Flanged, Welded |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
Name: |
Oilfield Cementing Tools |
Temperature: |
High Temperature, Low Temperature |
Features: |
X-mas Tree |
Application: |
Oilfield, Gasfield, Mining |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Core Components: |
Bearing, Gearbox, Pressure Vessel |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Connection: |
Threaded, Flanged, Welded |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
Name: |
Oilfield Cementing Tools |
Temperature: |
High Temperature, Low Temperature |

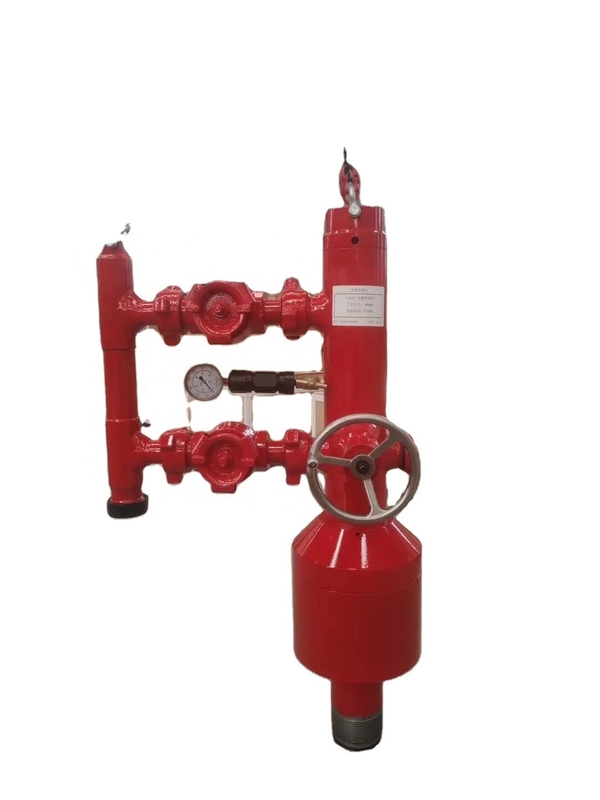

single plug cement head is a special tool for pumping slurry and releasing pumpdown plug. It can
couple with one plug, and make the drilling fluid fill into drill pipe in turn and quickly, simplify ce-
menting operation and prevent cement pollution.
The structure of the ZSC rotating drill pipe cement head as fellow:
The Bottom has a rotating joint, which is used to rotate casing. The pumpdown plug is installed in the body, and Spiral Pin Assembly is used to stop plug, the indicator shows whether plug pass through the rotating drill pipe cement head.
Open lift nipple on top of cement head, install pumpdown plug into cement body.
Connect cementing pipeline and slurry pipeline with union.
The connection thread of Top lift nipple and body.
| Specifications (in) | 5 1/2” | 6 5/8” | 7” | 7 5/8” | 9 5/8” | 10 3/4” | 13 3/8” |
| Overall Length(mm) | 1460 | 1500 | 1500 | 1550 | 1750 | 1750 | 1780 |
| Manifold | 2” Union | ||||||
| I.D. of Plug Container (mm) | 125 | 150 | 160 | 175 | 225 | 250 | 320 |
| Length of Plug Container (mm) | 400 | 450 | 450 | 450 | 550 | 550 | 600 |
| Working Pressure (Mpa) | 35.50 | 35.50 | 35.50 | 35.50 | 35.50 | 35 |
35 |
FAQ
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
