Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API
Model Number: 2000psi to 20000 pis
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Application: |
Oilfield, Gasfield, Mining |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Connection: |
Threaded, Flanged, Welded |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
Name: |
Oilfield Cementing Tools |
Temperature: |
High Temperature, Low Temperature |
Application: |
Oilfield, Gasfield, Mining |
Work Pressure: |
2000~15000 PSI |
Certification: |
API |
Processing Type: |
Forging |
Production Capacity: |
1000 Sets/year |
Connection: |
Threaded, Flanged, Welded |
Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
Name: |
Oilfield Cementing Tools |
Temperature: |
High Temperature, Low Temperature |

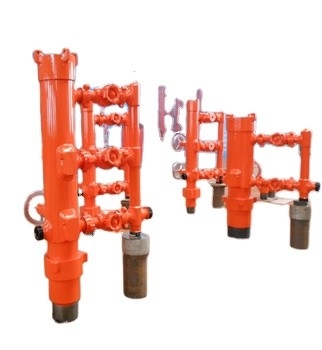

The Cement Head is a special tool for pumping slurry and releasing plug. It makes the drilling fluid fill into casing in turn and quickly.
a. Quick-latch adapter is designed to offer easier, faster and safer makeup for cementing casing.
b. Able to couple with two plugs simultaneously. Simplify the cementing operation and prevent cement pollution.
c. Positive lever indicates plug releasing.
d. Balance pipe is developed.
Type of Cement Heads:
1. Drill pipe cement heads
2. Liftable drill pipe cement heads
3. Integral Ultrahigh pressure drill pipe cement heads
4. Simple casing cement heads
5. Quick change casing cement heads
6. Integral quick change casing cement heads
| Specifications (in) | 5 1/2” | 6 5/8” | 7” | 7 5/8” | 9 5/8” | 10 3/4” | 13 3/8” |
| Overall Length(mm) | 1460 | 1500 | 1500 | 1550 | 1750 | 1750 | 1780 |
| Manifold | 2” Union | ||||||
| I.D. of Plug Container (mm) | 125 | 150 | 160 | 175 | 225 | 250 | 320 |
| Length of Plug Container (mm) | 400 | 450 | 450 | 450 | 550 | 550 | 600 |
| Working Pressure (Mpa) | 35.50 | 35.50 | 35.50 | 35.50 | 35.50 | 35 |
35 |
FAQ
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
