Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: IOS,API
Model Number: 4 1/2"-20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Application: |
Oilfield Cementing |
Dimension(L*W*H): |
12CMX0.5X0.8 |
Product Name: |
Cementing/cement Plug |
Material: |
Rubber |
Condition: |
New |
Packaging: |
Wooden Case |
Application: |
Oilfield Cementing |
Dimension(L*W*H): |
12CMX0.5X0.8 |
Product Name: |
Cementing/cement Plug |
Material: |
Rubber |
Condition: |
New |
Packaging: |
Wooden Case |

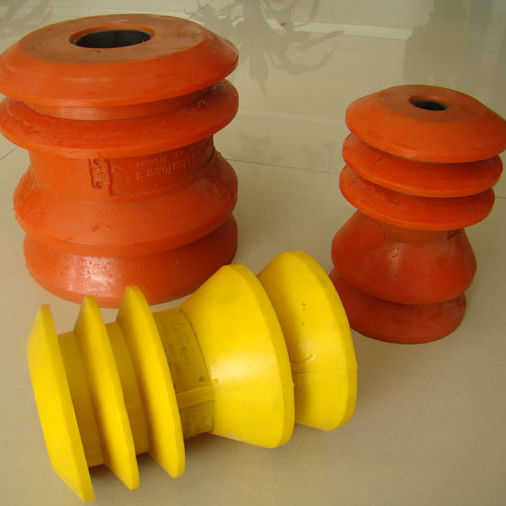

Cementing Plug
We specialize in providing API oilfield drilling cementing tools, specifically cement plugs for both top and bottom applications. Our cement plugs are crucial components used to isolate cement slurry from other fluids, ensuring consistent slurry performance and preventing contamination. We offer two commonly used types of plugs for cementing operations.
Our cement plugs are meticulously constructed using high-grade rubber, securely bonded to either a composite or aluminum core. These plugs are designed for PDC drilling, allowing for easy removal during subsequent operations. The aluminum core plug is capable of withstanding temperatures up to 200 degrees Fahrenheit.
Additionally, we offer options for higher temperature applications and compatibility with synthetic or mud fluids. We provide a wide range of sizes for our cement plugs, ranging from 4 1/2" to 20", and can also accommodate special size requirements. Whether you need a single plug system or a dual plug system, we have suitable top and bottom plugs to fulfill your specific needs.
Technical Data of Cementing Plug:
| Casing size(in) | casing weight range | Wiper Fin O.D | ||
| mm | in | mm | in | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8" | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10 3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.110 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
