Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: IOS,API
Model Number: 4 1/2"-20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Application: |
Oilfield Cementing |
Dimension(L*W*H): |
12CMX0.5X0.8 |
Product Name: |
Cementing/cement Plug |
Material: |
Rubber |
Condition: |
New |
Packaging: |
Wooden Case |
Thread: |
Full/Half/Round/Buttress |
Warranty: |
1 Year |
Application: |
Oilfield Cementing |
Dimension(L*W*H): |
12CMX0.5X0.8 |
Product Name: |
Cementing/cement Plug |
Material: |
Rubber |
Condition: |
New |
Packaging: |
Wooden Case |
Thread: |
Full/Half/Round/Buttress |
Warranty: |
1 Year |

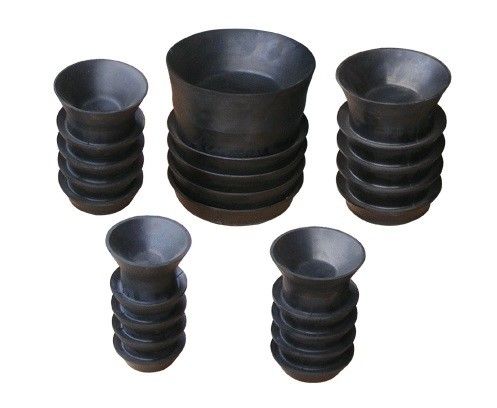

Cementing Plug
Our specialized expertise lies in the provision of API oilfield drilling cementing tools, specifically cement plugs for both top and bottom applications. These plugs are vital in the cementing process as they effectively isolate cement slurry from other fluids, ensuring consistent slurry performance and preventing contamination. We offer two commonly utilized types of cement plugs for cementing operations.
Our cement plugs are meticulously crafted using premium-quality rubber, which is securely bonded to either a composite or aluminum core. Designed for PDC drilling, these plugs facilitate easy removal during subsequent operations. The aluminum core plug has a high temperature resistance of up to 200 degrees Fahrenheit.
Furthermore, we offer options suitable for applications requiring higher temperatures and compatibility with synthetic or mud fluids. We provide a comprehensive range of sizes for our cement plugs, starting from 4 1/2" up to 20", and can also fulfill special size requirements. Whether you require a single plug system or a dual plug system, we have top and bottom plugs that are tailored to meet your specific needs.
Technical Data of Cementing Plug:
| Casing size(in) | casing weight range | Wiper Fin O.D | ||
| mm | in | mm | in | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8" | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10 3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.110 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
